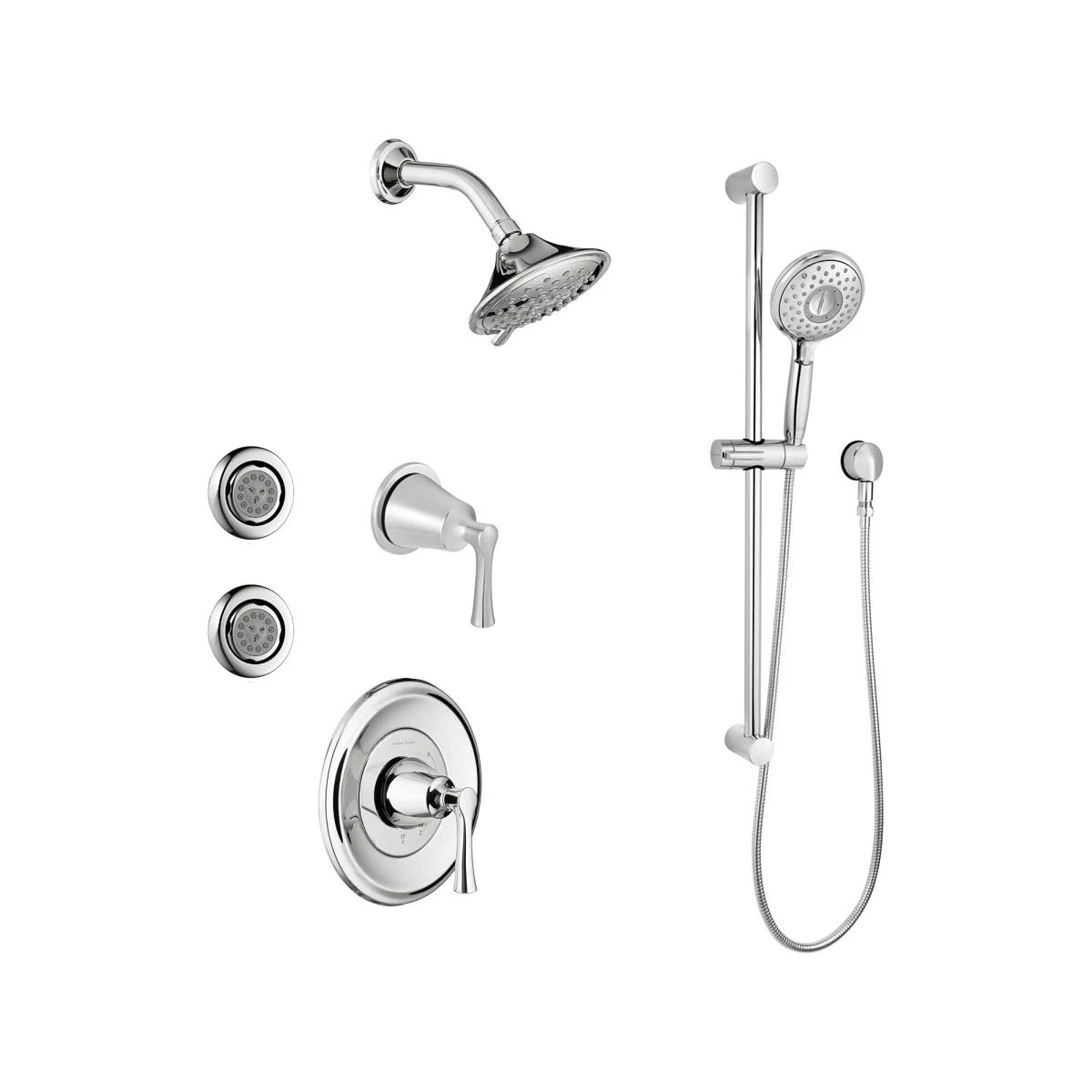

American Standard | Estate Pressure Balanced Shower System With Shower Head, Hand Shower, Slide Bar, Bodysprays, Shower Arm, Hose, Wall Supply Elbow, Diverter, And Valve Trim

All products in this package are covered under American Standard’s limited lifetime warranty

What’s Included:

• TU722.507 shower only
• RU101SS shower valve
• 1660.774 hand shower
• T722.430 diverter trim
• R433 shower valve
• 1660.130 body sprays Qty 2

American Standard TU722.507 Features:

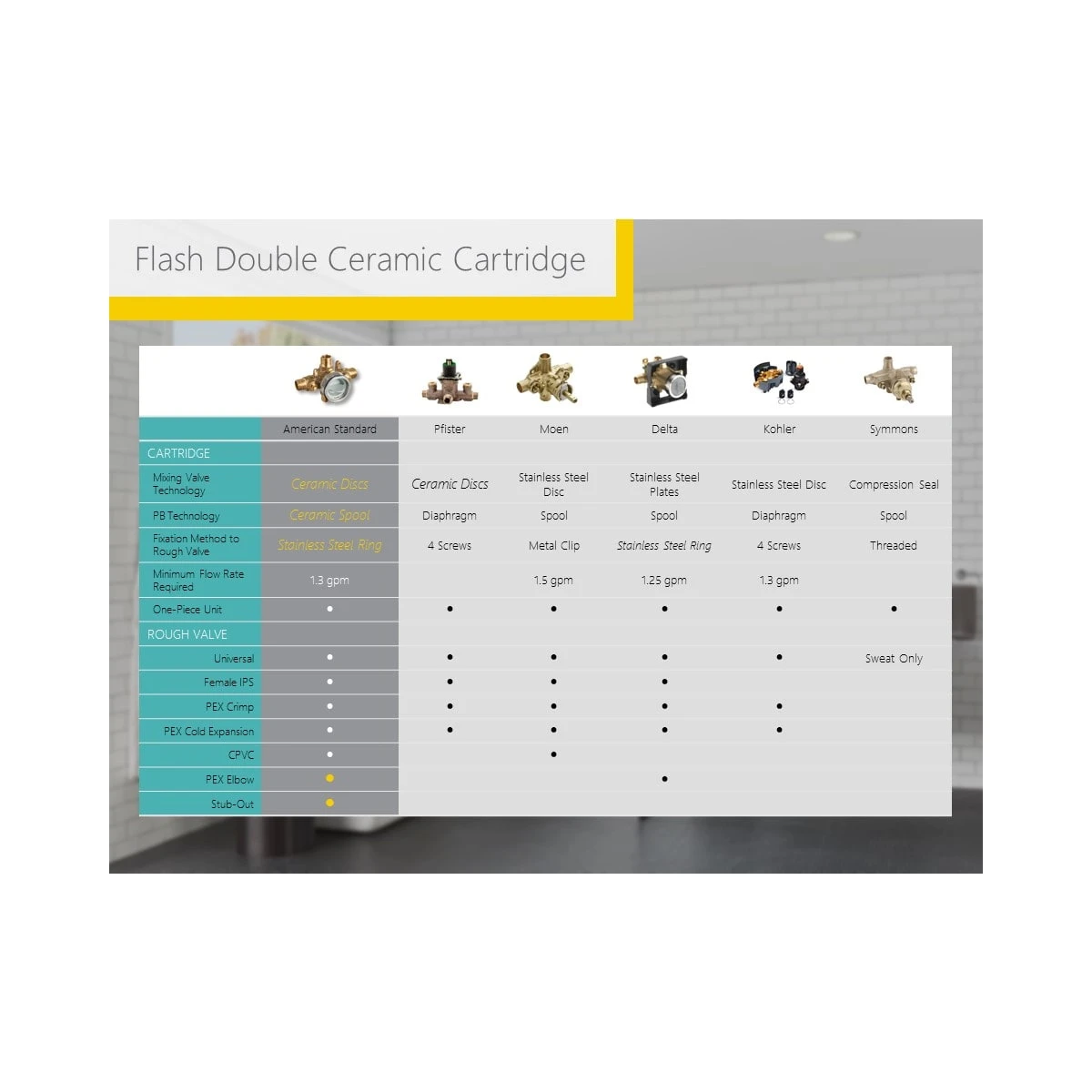

• Double ceramic pressure balance cartridge: Combination of ceramic disc mixing valve and a ceramic balancing spool in a one-piece cartridge
• Ceramic disc mixing valve: Assures a lifetime of drip-free performance and smooth handle operation
• Integrated check valves: Engineered to eliminate cross flow
• Adjustable hot limit safety stop: Limits the amount of hot water allowed to mix with cold – reduces the risk of accidental scalding

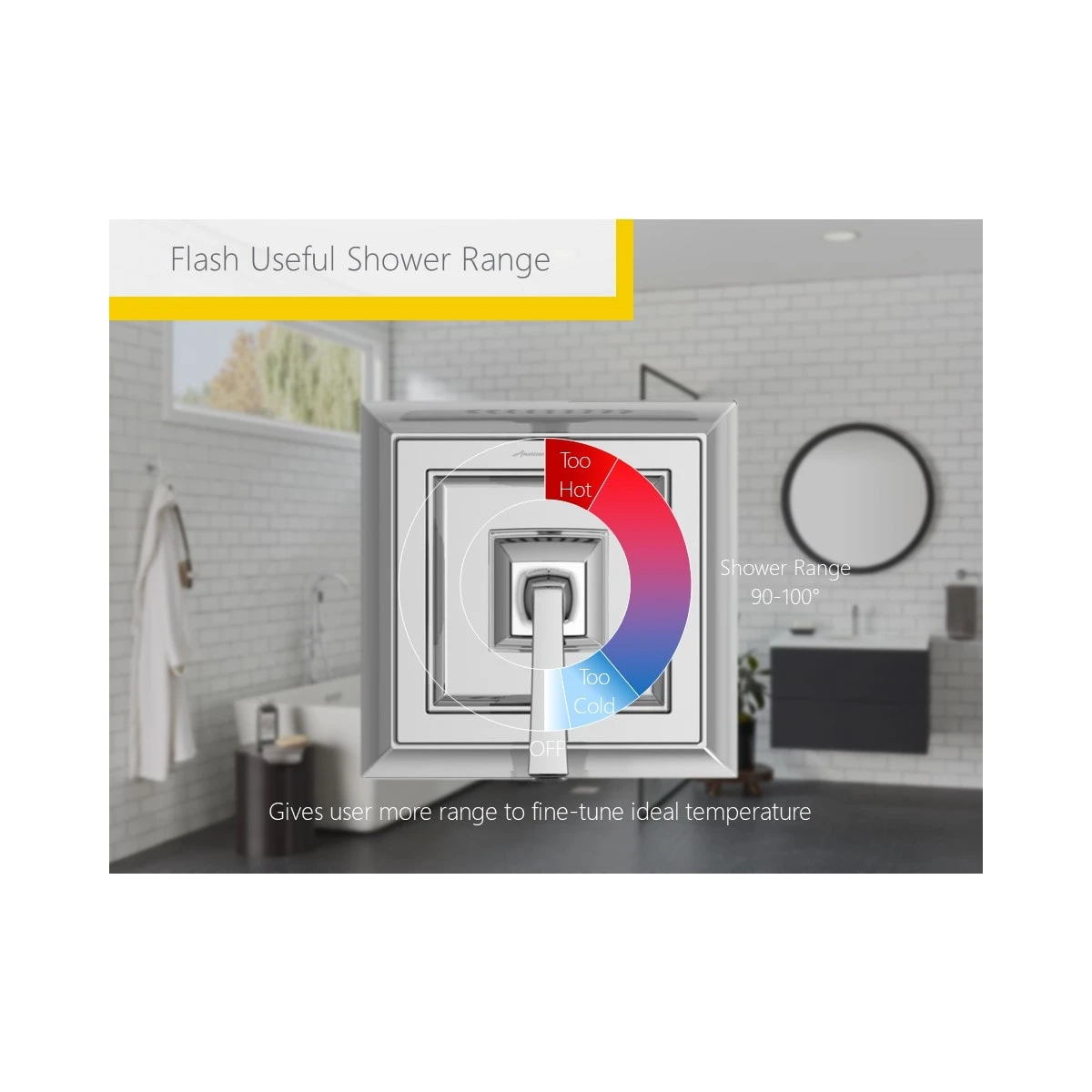

• Swinging temperature dial allows for pin-point water control
• Valve Trim Dimensions: 7-13/16″ H x 7-13/16″ W
• Includes pre-set safety stop with override capability
• Multi function shower head with 3 spray patterns
• Shower Head Flow Rate (GPM): 1.75 gallons-per-minute
• Shower Head Width: 5″
• Shower Arm Reach: 5-1/2″

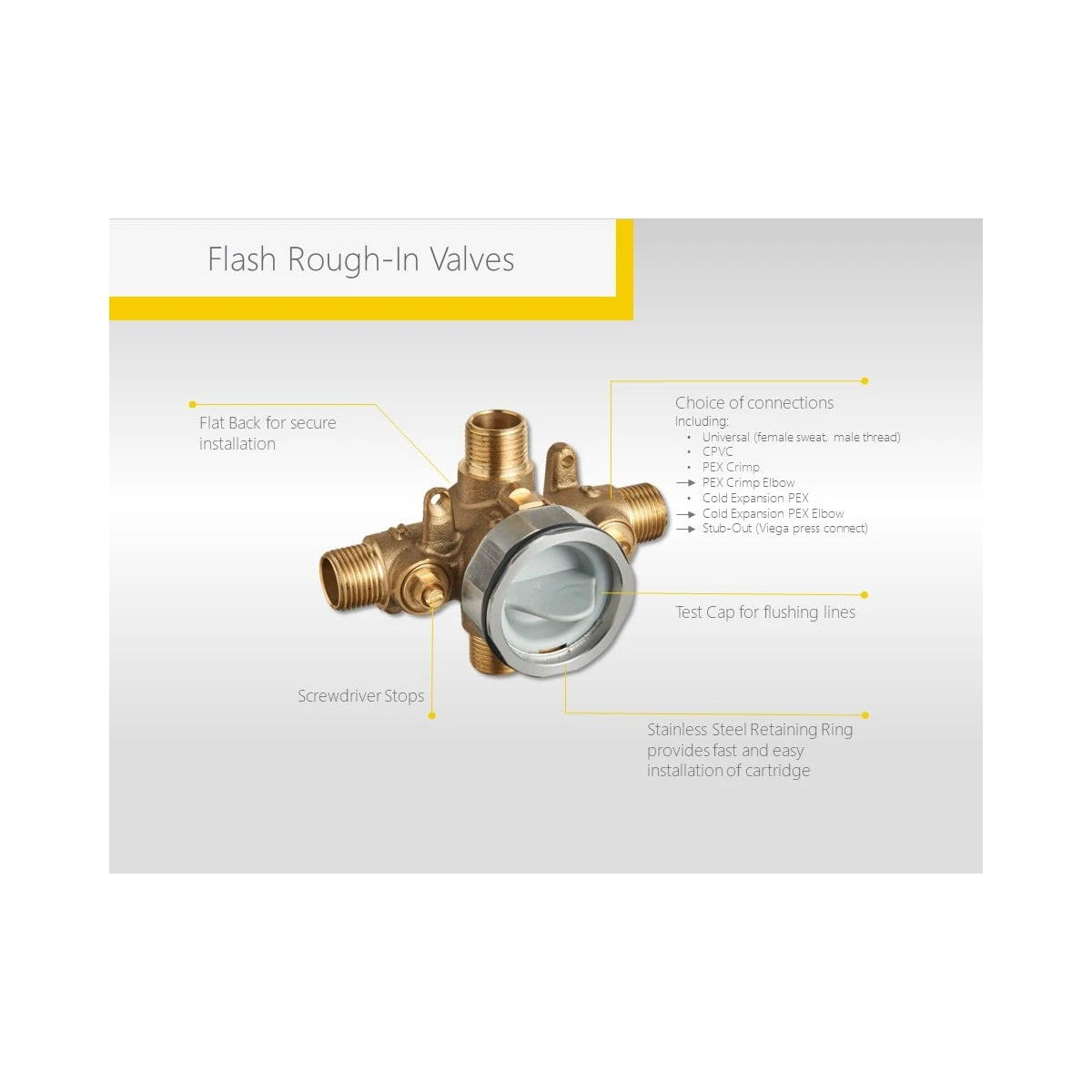

American Standard RU101SS Features:

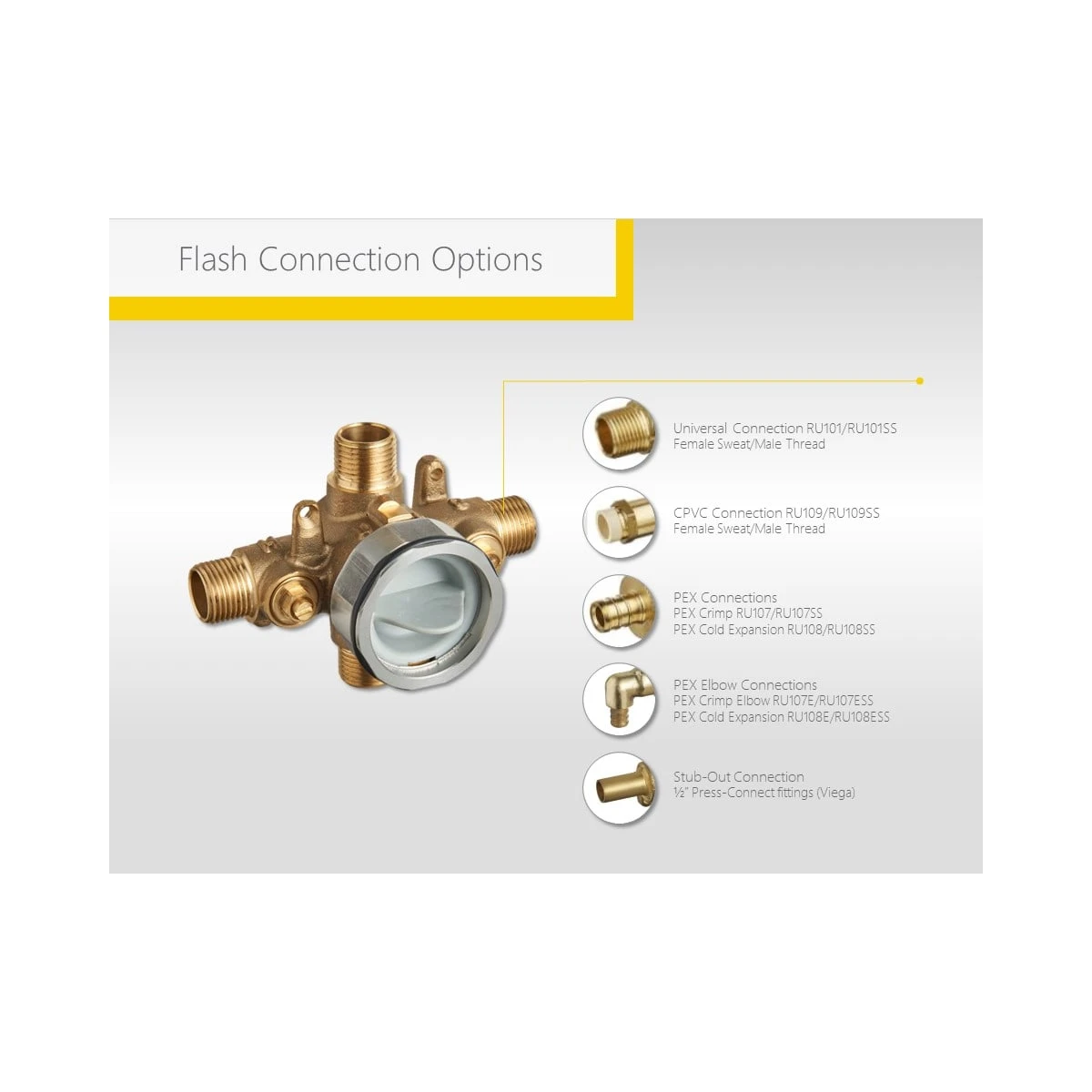

• Choice of connections: Fast and easy installation without adaptors reducing leak points
• Durable cast brass valve body: Ideal material for prolonged contact with water

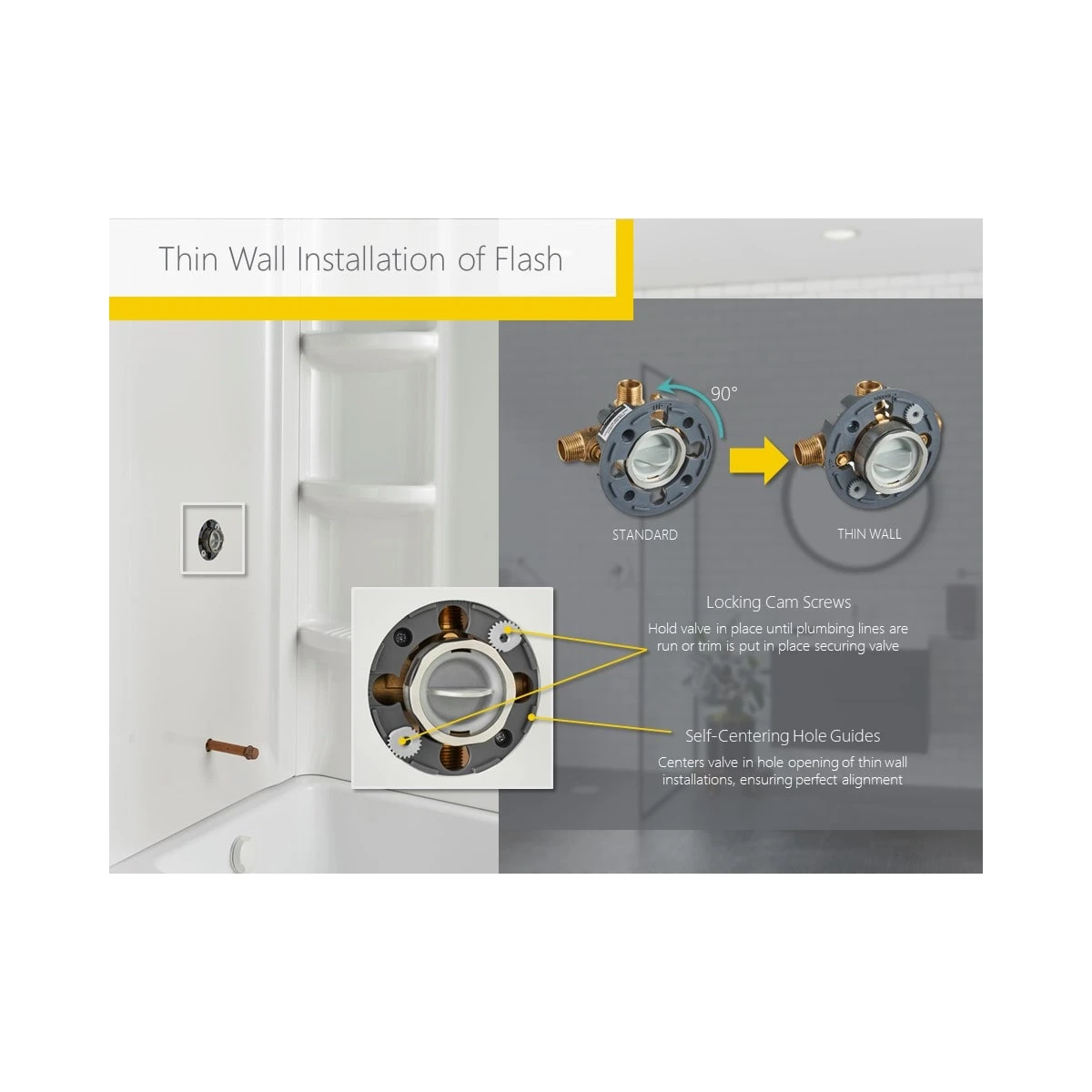

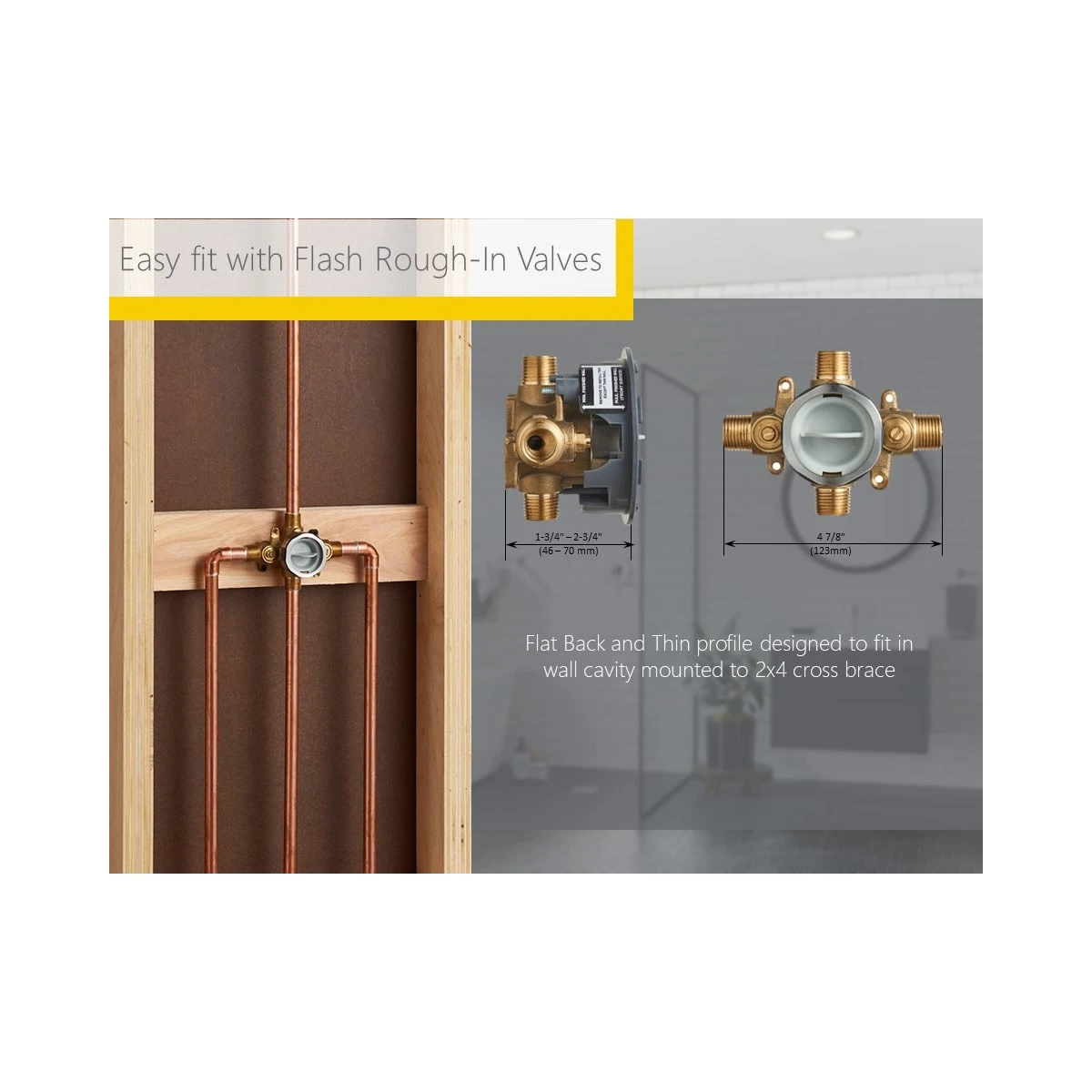

• Flat back: Allows valve to be mounted flush against cross brace for easy and solid installation
• Test cap: Allows valve body to be tested and flushed without the presence of the valve cartridge – can be tested using test cap with air (200 psi) or water (300 psi)
• Stainless steel retaining ring with flats: Secures test cap/cartridge in place and eliminates need for screws
• Back-to-back capability: Hot and cold can be reversed quickly and easily
• Connection Size: 1/2″
• Connection Type: Universal

American Standard 1660.774 Features:

• Multi-function hand shower – featuring drench, powerwash®, sensitive, and massage spray patterns
• Hand Shower package includes: hand shower, slide bar, hose, and supply elbows
• Angle of holding bracket is adjustable
• Designed to easily install with standard U.S. plumbing connections
• Includes sliding bracket for hand shower
• WaterSense certified
• All hardware required for installation is included
• Hand Shower Height: 10-1/16″
• Hand Shower Width: 4-15/16″
• Hand Shower Flow Rate: 1.8 gallons-per-minute
• Hose Length: 59″
• Slide Bar Length: 30-1/8″
• Slide Bar Depth: 1-3/4″

American Standard T722.430 Features:

• Trim constructed of brass – ensuring durability and providing aesthetic appeal
• Premier finishing process – finishes will resist rusting and corrosion through every day use
• Can be installed with 2-way or 3-way
• ADA compliant – complies with the standards set forth by the Americans with Disabilities Act for shower systems
• Secure mounting assembly
• All hardware required for installation is included
• Single lever handle
• Escutcheon (Trim Plate) Diameter: 2-3/4”
• Designed for use with standard U.S. plumbing connections

American Standard R433 Features:

• Constructed of brass
• 3-way valve between 3 outlets
• Outlets may only run independently
• 1/2″ NPT connections

American Standard 1660.130 Features:

• Secure mounting assembly
• Features four different spray functions
• All hardware required for installation is included
• Flow Rate: 1.5 GPM
• Height: 3″ (top to bottom)
• Width: 2-15/16″ (left to right)
• Depth (Projection): 1/2″ (off of wall)
• Number of Functions: 4
