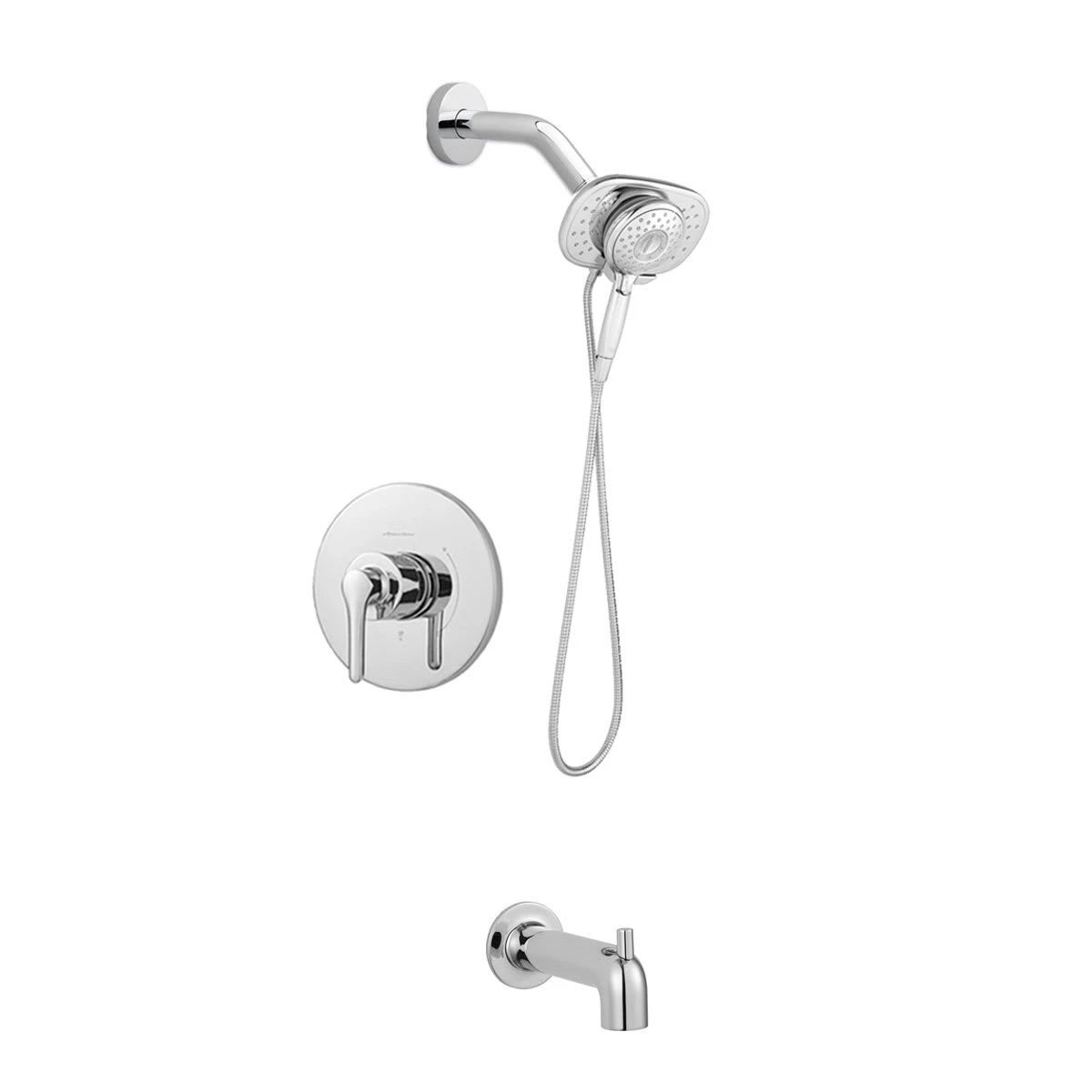

American Standard | Studio S Pressure Balanced Shower System With Shower Head, Hand Shower, Shower Arm, Hose, Tub Spout, Diverter, And Valve Trim

All products in this package are covered under American Standard’s limited lifetime warranty

What’s Included:

• TU105.500 valve trim only
• RU101SS shower valve
• 9038.254 shower head
• 1660.241 shower arm
• 8888.318 tub spout

American Standard TU105.500 Features:

• Double ceramic pressure balance cartridge: combination of ceramic disc mixing valve and a ceramic balancing spool in a one-piece cartridge
• Ceramic disc mixing valve assures a lifetime of drip-free performance and smooth handle operation
• Ceramic material is unaffected by mineral deposits and harsh water conditions
• Integrated check valves are engineered to eliminate cross flow
• Adjustable hot limit safety stop limits the amount of hot water allowed to mix with cold – reduces the risk of accidental scalding
• Valve Trim Height: 7-1/2″ (bottom to top)
• Valve Trim Width: 7-1/2″ (left to right)

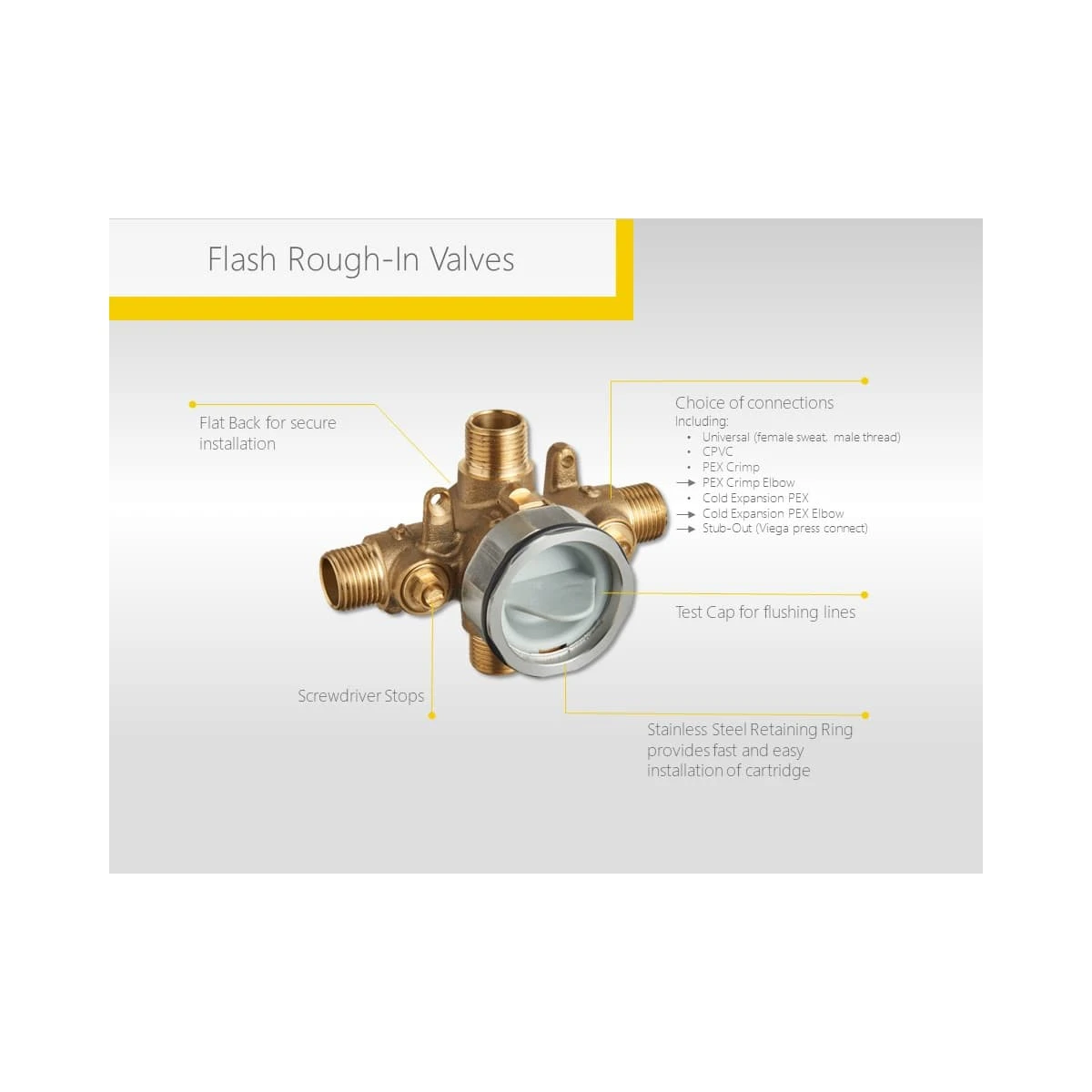

American Standard RU101SS Features:

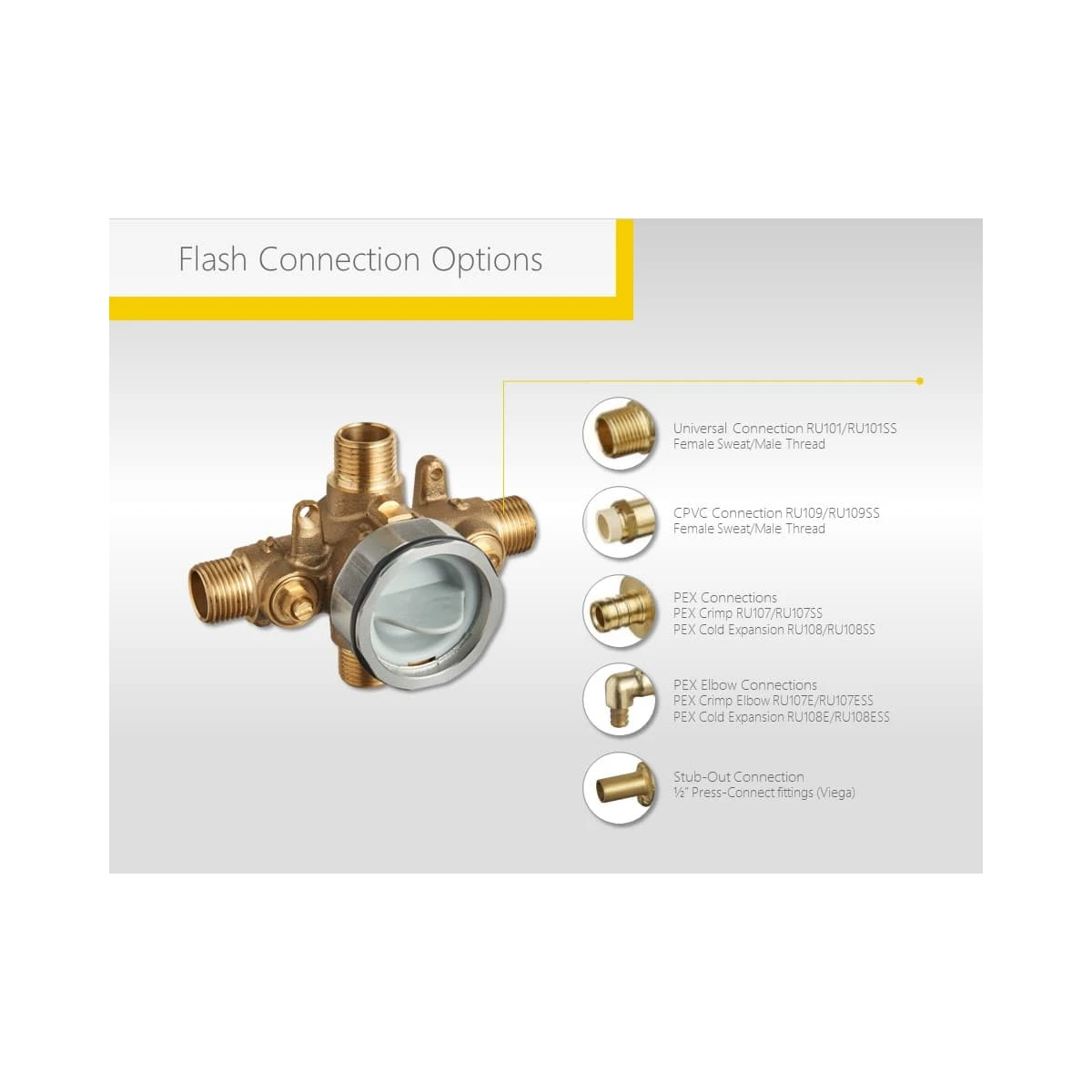

• Choice of connections: Fast and easy installation without adaptors reducing leak points
• Durable cast brass valve body: Ideal material for prolonged contact with water

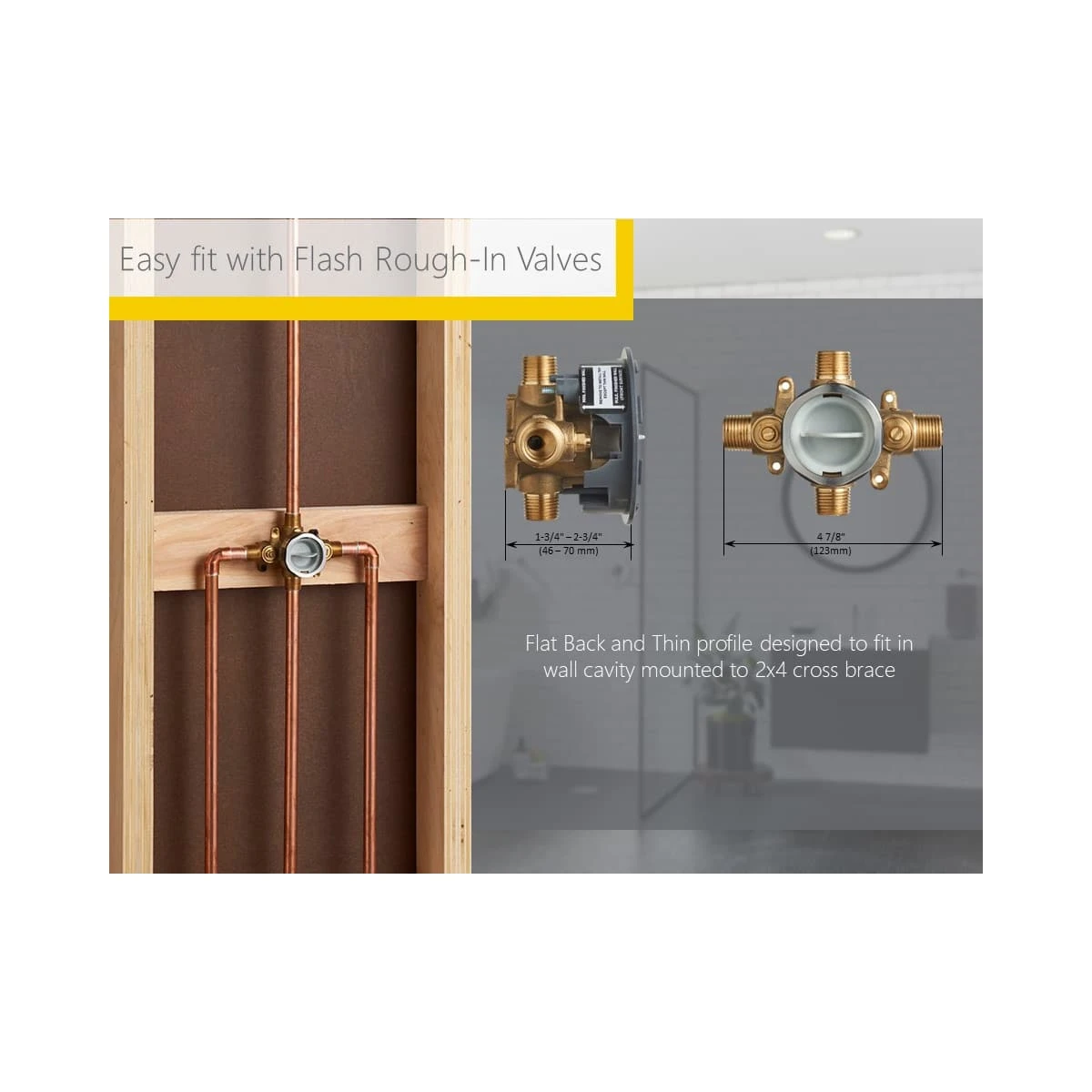

• Flat back: Allows valve to be mounted flush against cross brace for easy and solid installation
• Test cap: Allows valve body to be tested and flushed without the presence of the valve cartridge – can be tested using test cap with air (200 psi) or water (300 psi)
• Stainless steel retaining ring with flats: Secures test cap/cartridge in place and eliminates need for screws
• Back-to-back capability: Hot and cold can be reversed quickly and easily
• Connection Size: 1/2″
• Connection Type: Universal

American Standard 9038.254 Features:

• Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
• Multi function shower head – featuring drench, sensitive, powerwash®, and massage spray patterns
• Shower head rotates on a swivel ball assembly
• Designed to easily install with standard U.S. plumbing connections
• All hardware for installation is included
• Shower Head Diameter: 4-15/16″
• Shower Head Width: 9-1/2″
• Shower Head Height: 3-5/8″
• Flow Rate: 1.8 gallons-per-minute

American Standard 1660.241 Features:

• Constructed of brass, ensuring durability and dependability
• Secure mounting assembly
• All hardware required for installation is included
• Length: 5-1/2″
• Width: 2-1/2″
• Connection Type: NPT
• Connection Size: 1/2″

American Standard 8888.318 Features:

• Constructed from brass for reliability
• Tub spout equipped with a classic “pull-up” style diverter
• Unrestricted flow rate allows for rapid filling of the tub
• Tub Spout Reach: 6-1/8″ (wall to center of spout outlet)
• Connection Size: 1/2″
• Connection Type: Slip Fit
