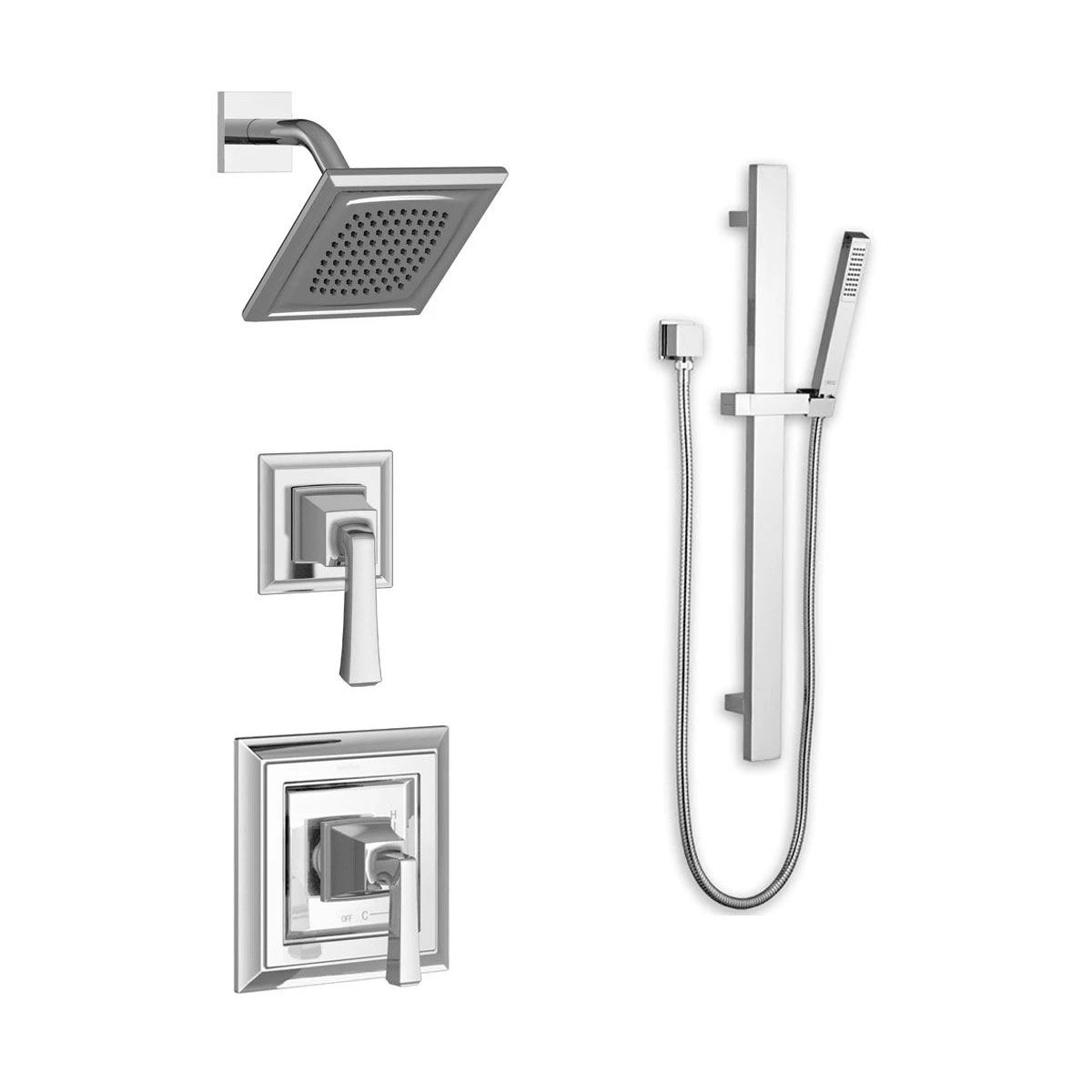

American Standard | Town Square S Pressure Balanced Shower System With Shower Head, Hand Shower, Slide Bar, Shower Arm, Hose, Wall Supply Elbow, Diverter, And Valve Trim

All products in this package are covered under American Standard’s limited lifetime warranty

What’s Included:

• TU455.507 shower only
• RU101SS shower valve
• 1660.608 hand shower
• 1660.230 slide bar
• 8888.035 hand shower hose
• 8888.069 wall supply elbow
• T455.430 diverter trim
• R422 diverter valve

American Standard TU455.507 Features:

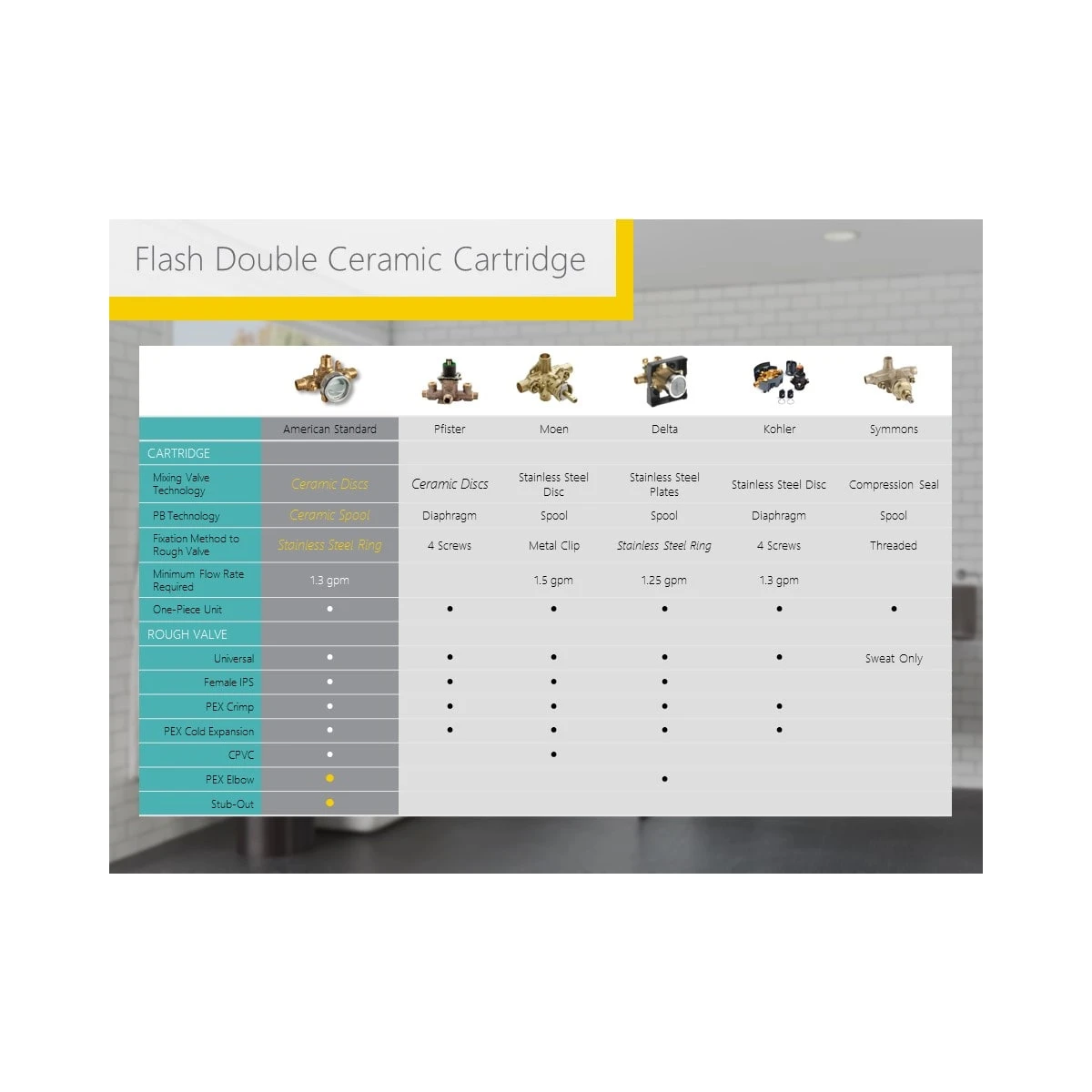

• Double ceramic pressure balance cartridge: Combination of ceramic disc mixing valve and a ceramic balancing spool in a one-piece cartridge
• Ceramic disc mixing valve: Assures a lifetime of drip-free performance and smooth handle operation
• Integrated check valves: Engineered to eliminate cross flow
• Adjustable hot limit safety stop: Limits the amount of hot water allowed to mix with cold – reduces the risk of accidental scalding
• Swinging temperature dial allows for pin-point water control
• Valve Trim Dimensions: 7-3/8″ H x 7-3/8″ W
• Includes pre-set safety stop with override capability
• Single function showerhead
• Shower Head Flow Rate (GPM): 1.8 gallons-per-minute
• Shower Head Width: 6-5/16″
• Shower Arm Reach: 5-1/2″

American Standard RU101SS Features:

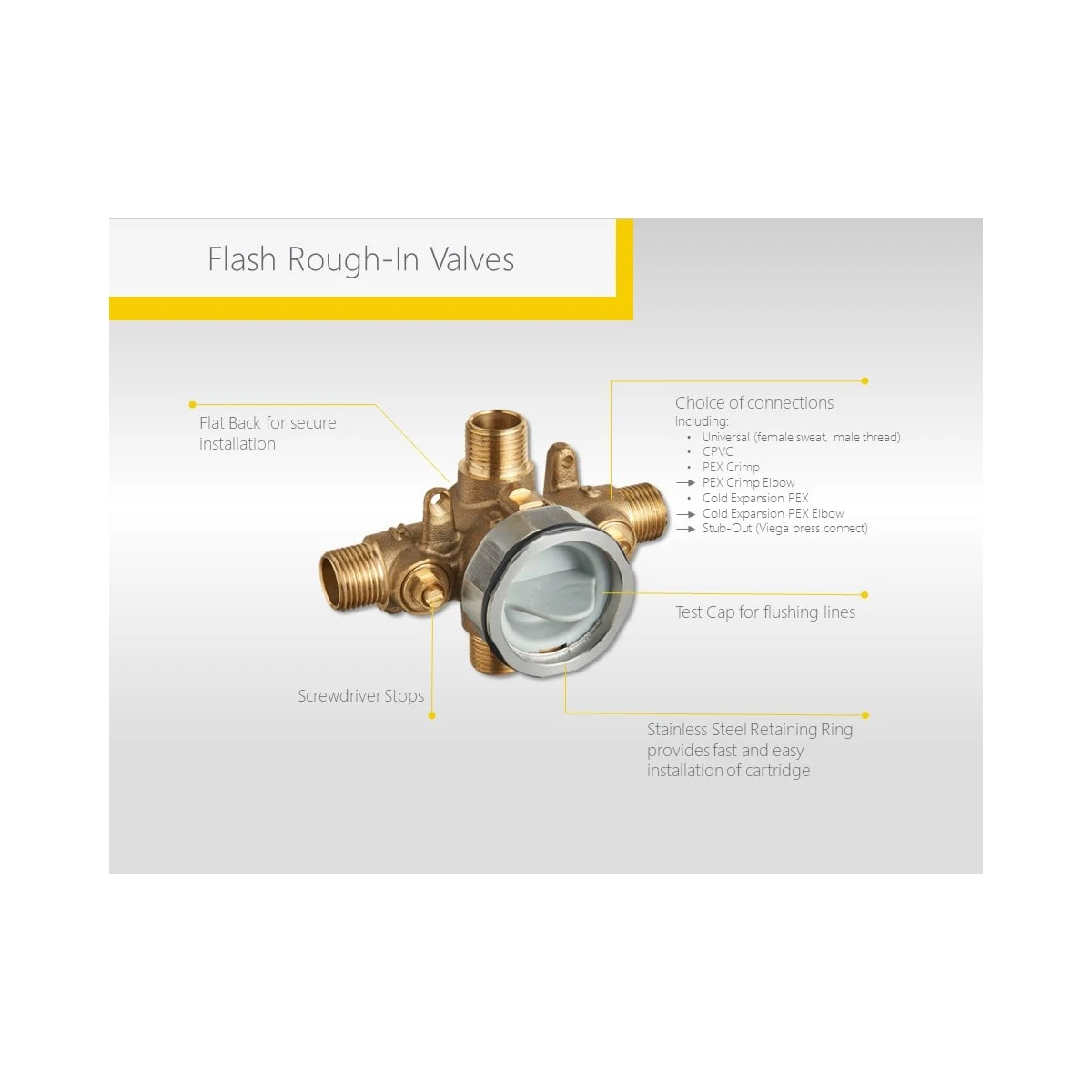

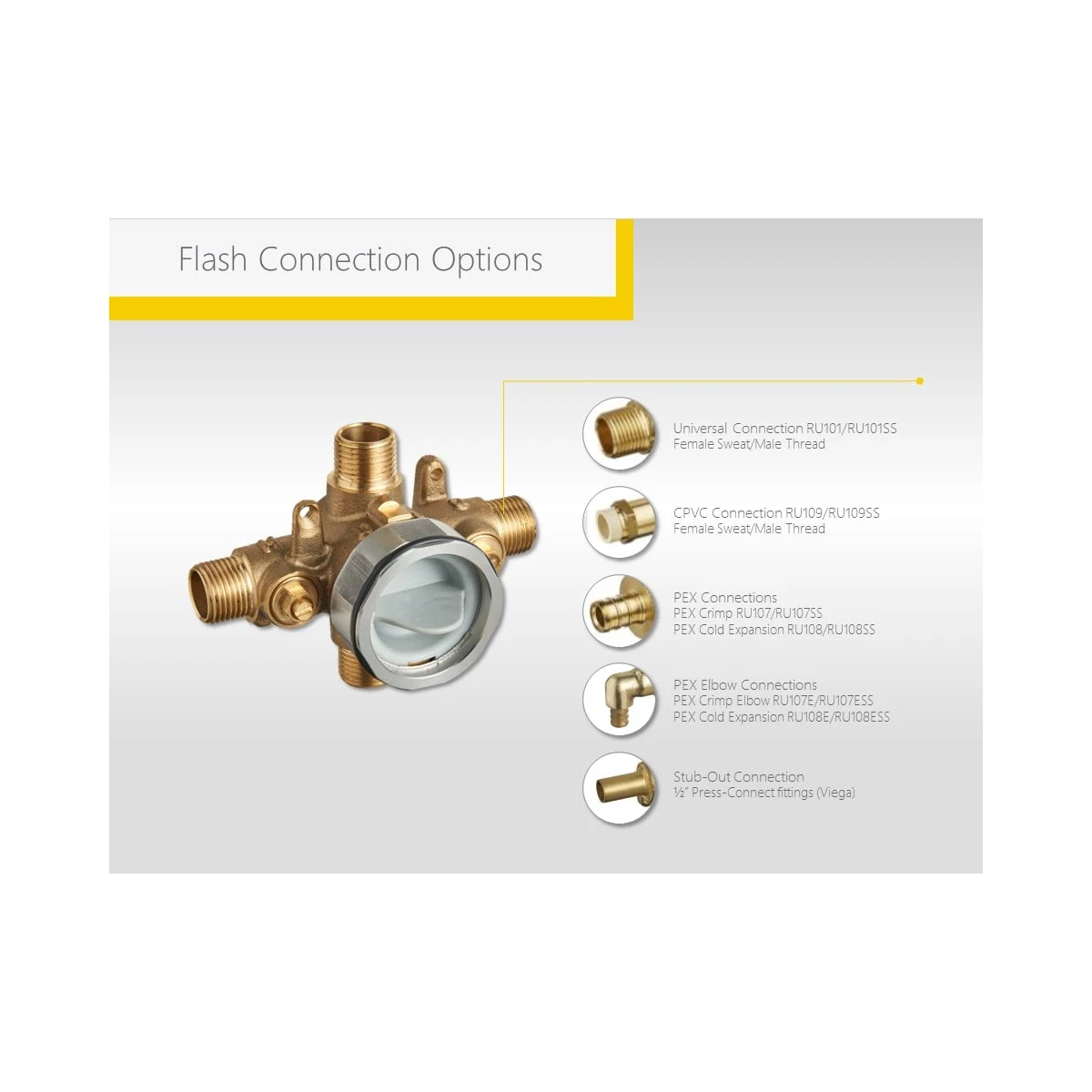

• Choice of connections: Fast and easy installation without adaptors reducing leak points
• Durable cast brass valve body: Ideal material for prolonged contact with water

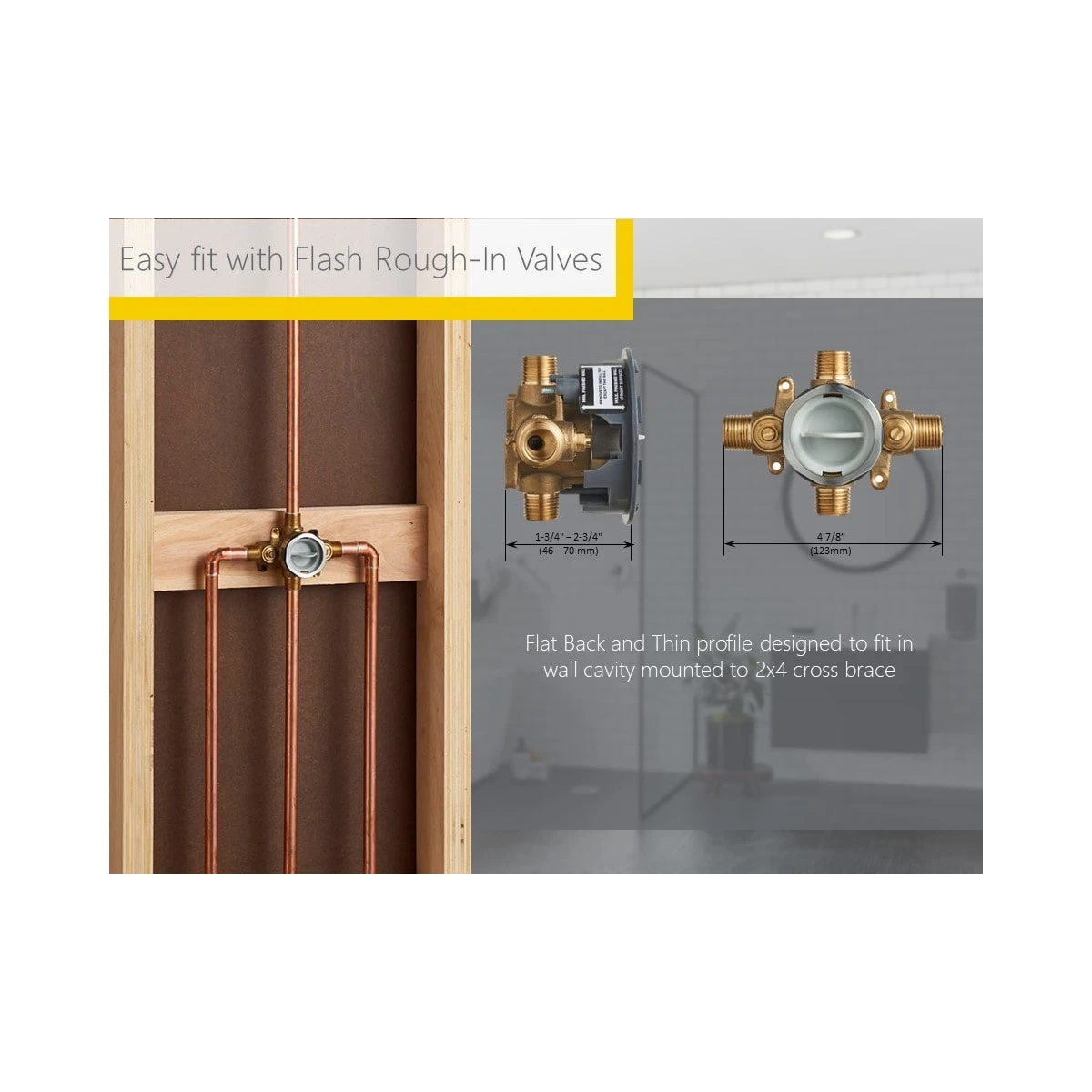

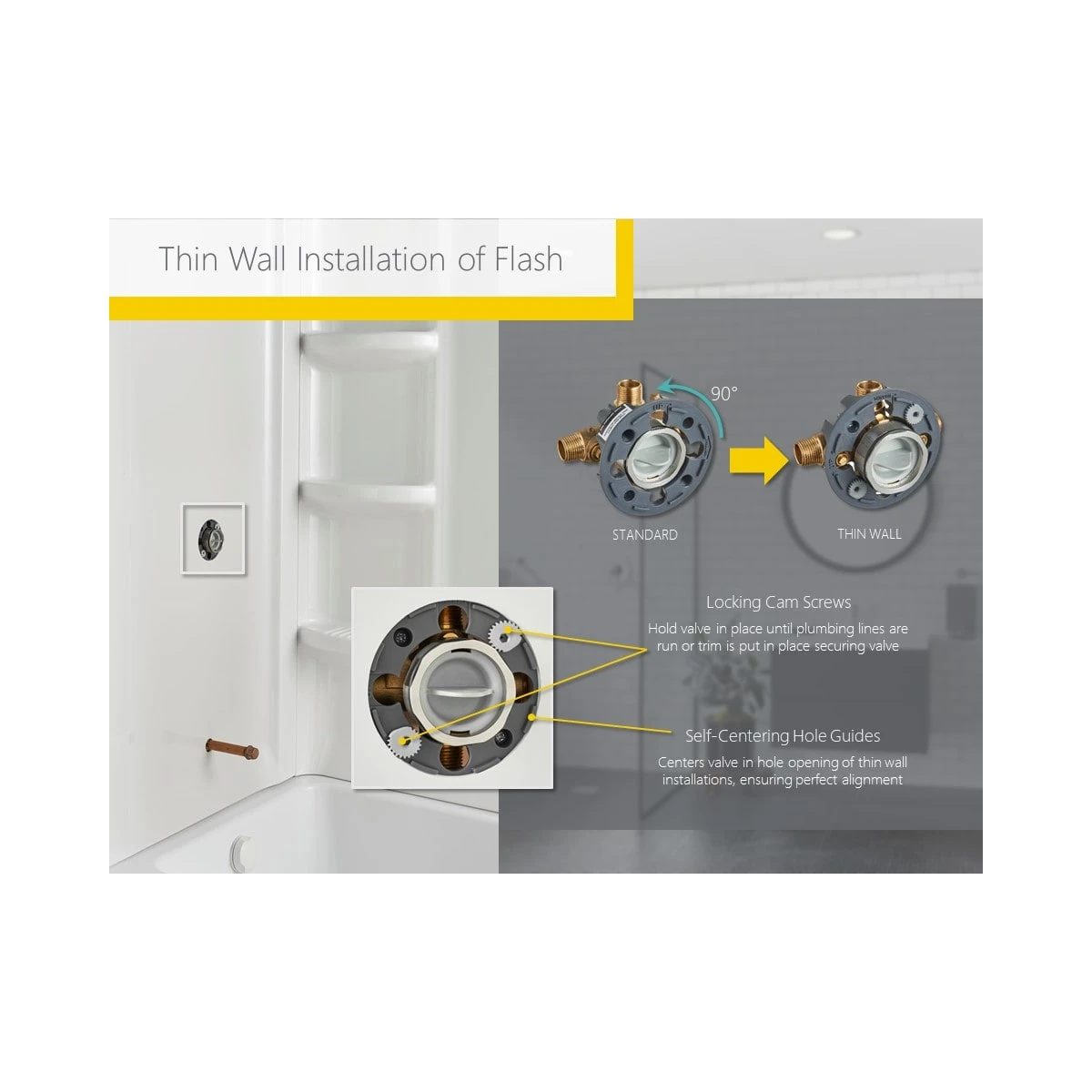

• Flat back: Allows valve to be mounted flush against cross brace for easy and solid installation
• Test cap: Allows valve body to be tested and flushed without the presence of the valve cartridge – can be tested using test cap with air (200 psi) or water (300 psi)
• Stainless steel retaining ring with flats: Secures test cap/cartridge in place and eliminates need for screws
• Back-to-back capability: Hot and cold can be reversed quickly and easily
• Connection Size: 1/2″
• Connection Type: Universal

American Standard 1660.608 Features:

• Constructed of brass
• Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
• WaterSense certified
• Height: 7-1/2″
• Width: 1″
• Flow Rate (GPM): 1.8 gallons-per-minute
• Connection Size: 1/2″
• Connection Type: NPT

American Standard 1660.230 Features :

• Constructed of metal ensuring long lasting dependability and durability
• Secure mounting assembly
• All hardware required for installation is included
• Adjustable hand shower mounting mechanism
• Square modern style slide bar
• Height: 30″ (top to bottom)
• Width: 6″ (left to right)
• Depth (Projection): 2-1/8″ (from wall to bar)

American Standard 8888.035 Features:

• Compatible with all personal showers
• Length: 59″ (left to right)

American Standard 8888.069 Features:

• All hardware required for installation is included
• Height: 1-15/16″ (top to bottom)
• Width: 1-15/16″ (left to right)
• Connection Type: NPT
• Connection Size: 1/2″

American Standard T455.430 Features:

• Premier finishing process – finishes will resist rusting and corrosion through everyday use
• Constructed of metal
• Single function diverter trim
• 1 Lever handle included
• ADA compliant
• Width: 3-1/4″ (left to right)

American Standard R422 Features:

• Body constructed from solid brass
• Ceramic disc valve provides drip-free performance
• 2-way valve controls direction of water from mixing valve to custom shower systems
• Note: Valve does not allow for shared flow between shower outlets
• Designed for 1/2″ threaded inlet/outlet connections
• Sturdy mounting bracket included – preventing valve rocking
