American Standard | Townsend Pressure Balanced Shower System With Shower Head, Hand Shower, Slide Bar, Shower Arm, Hose, Wall Supply Elbow, Diverter, And Valve Trim

All products in this package are covered under American Standard’s limited lifetime warranty

What’s Included:

• TU353.500 valve trim only
• RU101SS shower valve
• 9038.834 shower system

American Standard TU353.500 Features:

• Double ceramic pressure balance cartridge: combination of ceramic disc mixing valve and a ceramic balancing spool in a one-piece cartridge
• Ceramic disc mixing valve assures a lifetime of drip-free performance and smooth handle operation
• Ceramic material is unaffected by mineral deposits and harsh water conditions
• Integrated check valves are engineered to eliminate cross flow
• Adjustable hot limit safety stop limits the amount of hot water allowed to mix with cold – reduces the risk of accidental scalding
• Valve Trim Height: 8-1/4″ (bottom to top)
• Valve Trim Width: 8-1/4″ (left to right)

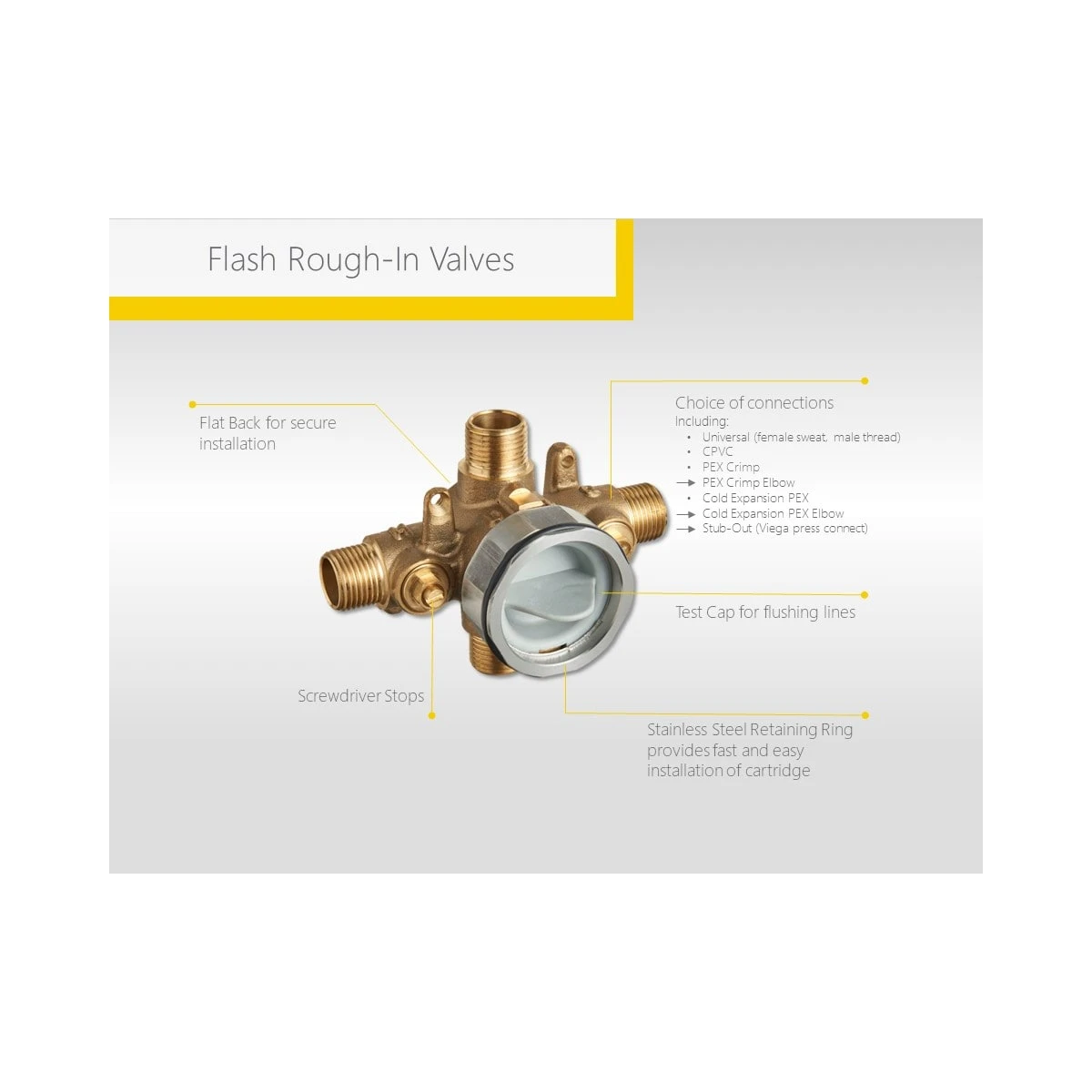

American Standard RU101SS Features:

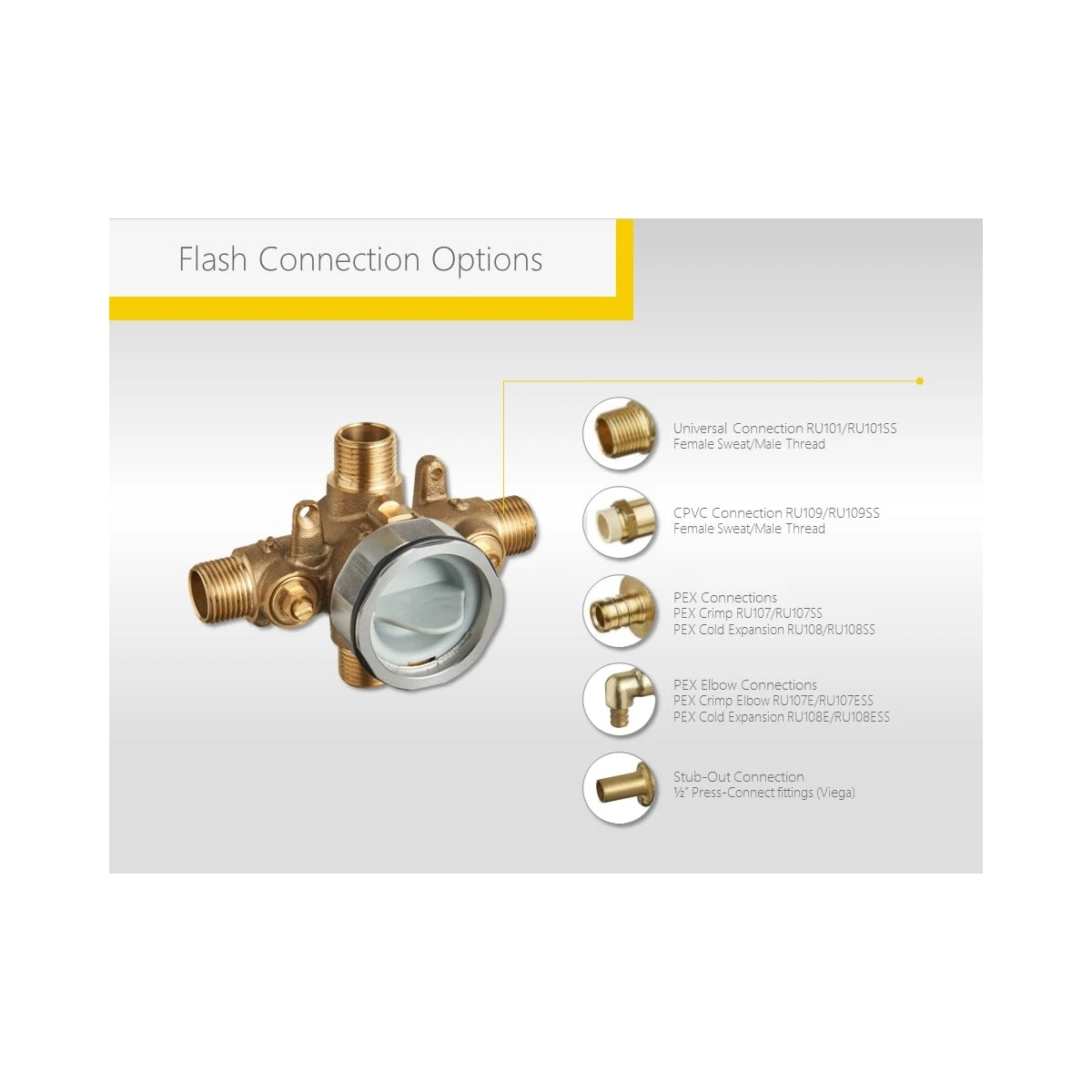

• Choice of connections: Fast and easy installation without adaptors reducing leak points
• Durable cast brass valve body: Ideal material for prolonged contact with water

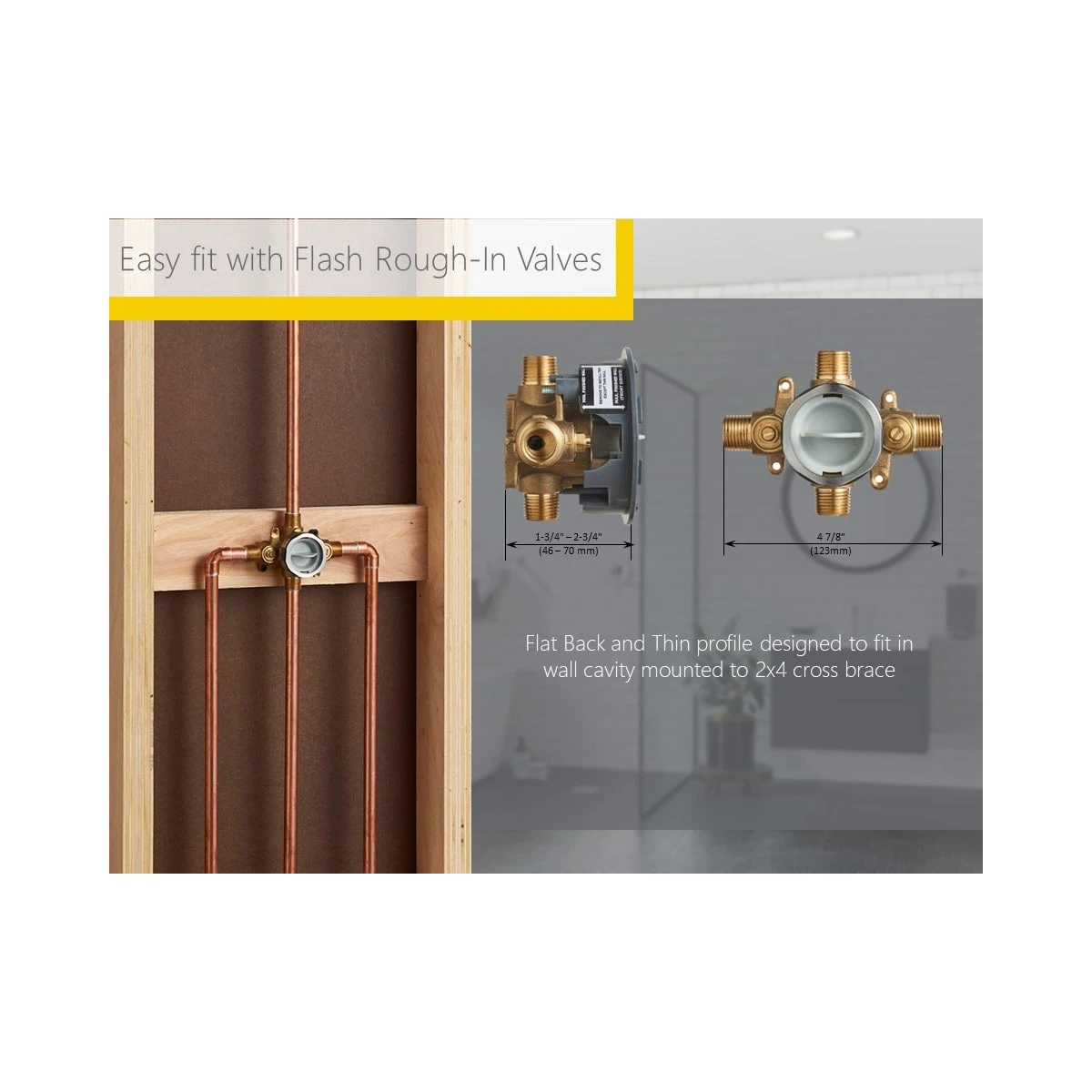

• Flat back: Allows valve to be mounted flush against cross brace for easy and solid installation
• Test cap: Allows valve body to be tested and flushed without the presence of the valve cartridge – can be tested using test cap with air (200 psi) or water (300 psi)
• Stainless steel retaining ring with flats: Secures test cap/cartridge in place and eliminates need for screws
• Back-to-back capability: Hot and cold can be reversed quickly and easily
• Connection Size: 1/2″
• Connection Type: Universal

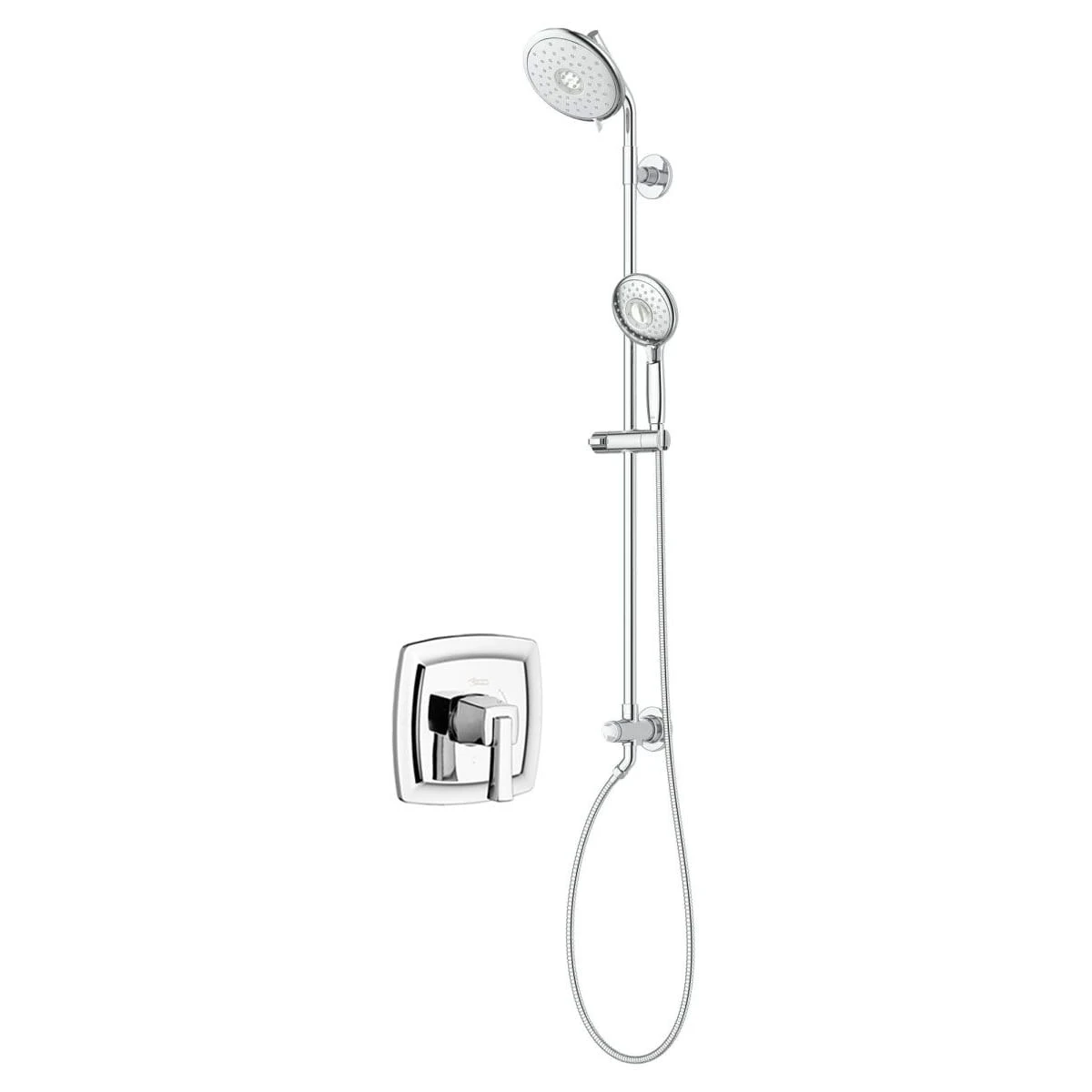

American Standard 9038.834 Features:

• System includes 7” four-spray shower head, hand shower, push-button diverter, slide bar with Easy Glide tab, 69” metal shower hose, adhesive tape and screws
• Enjoy using shower head and hand shower, alone or together
• Easy installation for retrofit, renovation or new construction eliminates drilling or damage to tile
• Spray functions include Drench, Sensitive, Jet and Massage
• AquaToggle on shower head and hand shower to switch sprays with one hand
• Push-button diverter easily switches from shower head to hand shower or combines both
• Easy Glide slide bar adjusts for the perfect hand shower height
• Rubber nozzles wipe clean with your fingertip
• Shower Head Flow Rate: 1.8 gallons-per-minute
• Shower Head Height: 3-3/16″ (top to bottom)
• Shower Head Width: 7-3/16″ (left to right)
• Shower Arm Length: 6-1/4″
• Hose Length: 69″
• Hand Shower Flow Rate: 1.8 gallons-per-minute
• Hand Shower Type: Multi-Function
• Shower system includes wall supply for hand shower
