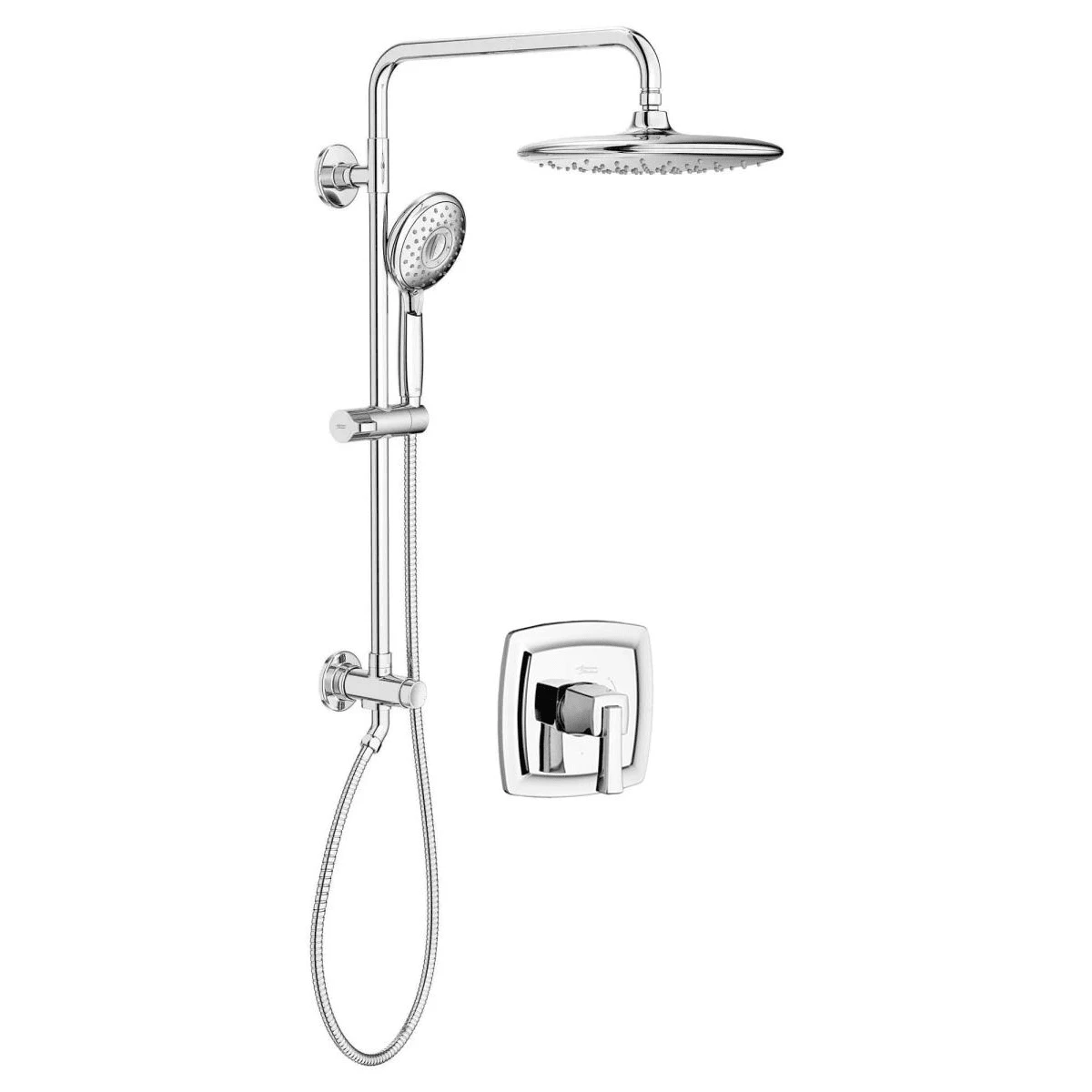

American Standard | Townsend Pressure Balanced Shower System With Shower Head, Hand Shower, Slide Bar, Shower Arm, Hose, Wall Supply Elbow, Diverter, Rough-In And Valve Trim

All products in this package are covered under American Standard’s limited lifetime warranty

What’s Included:

• TU353.500 valve trim only
• RU101SS shower valve
• 9038.804 shower system

American Standard TU353.500 Features:

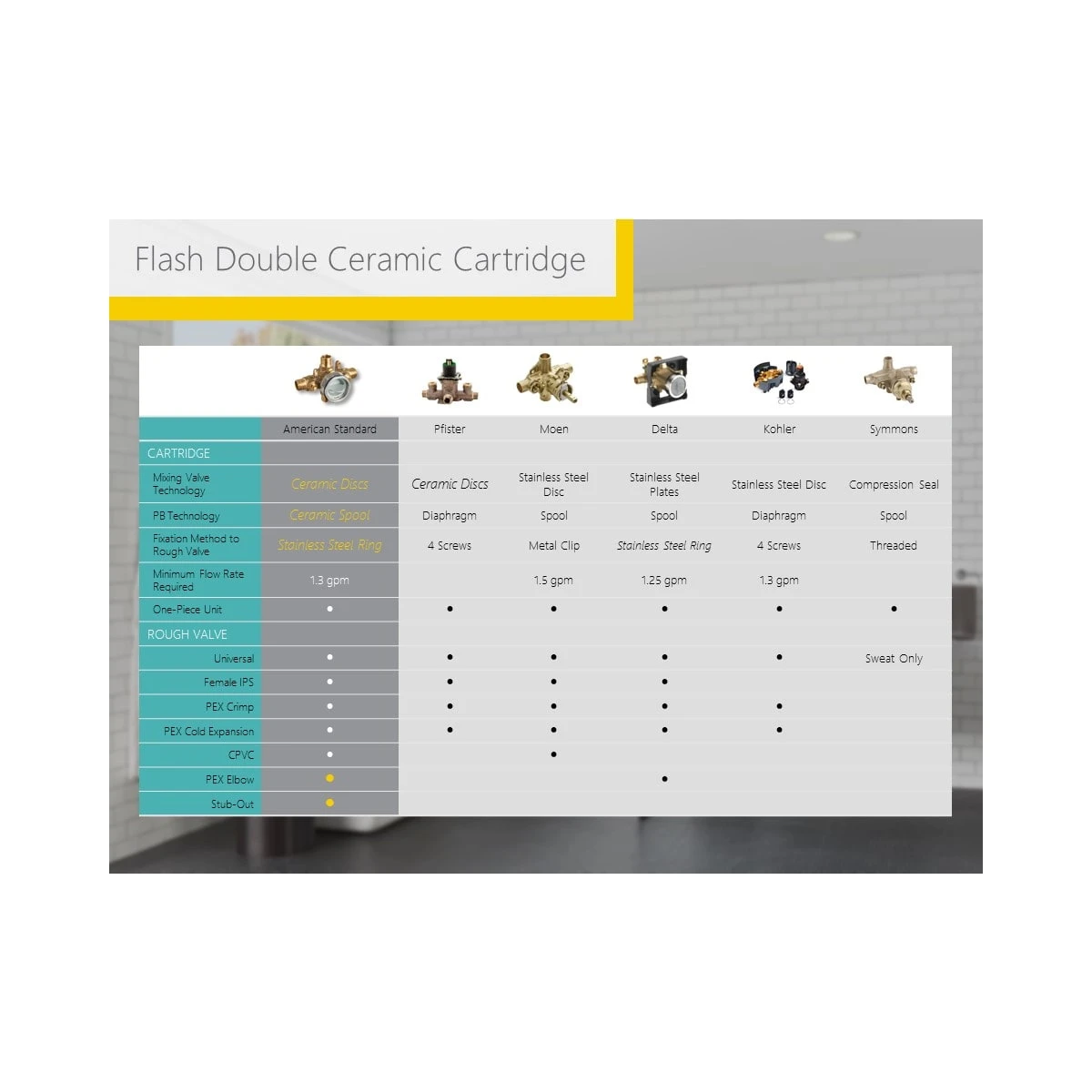

• Double ceramic pressure balance cartridge: combination of ceramic disc mixing valve and a ceramic balancing spool in a one-piece cartridge
• Ceramic disc mixing valve assures a lifetime of drip-free performance and smooth handle operation
• Ceramic material is unaffected by mineral deposits and harsh water conditions
• Integrated check valves are engineered to eliminate cross flow

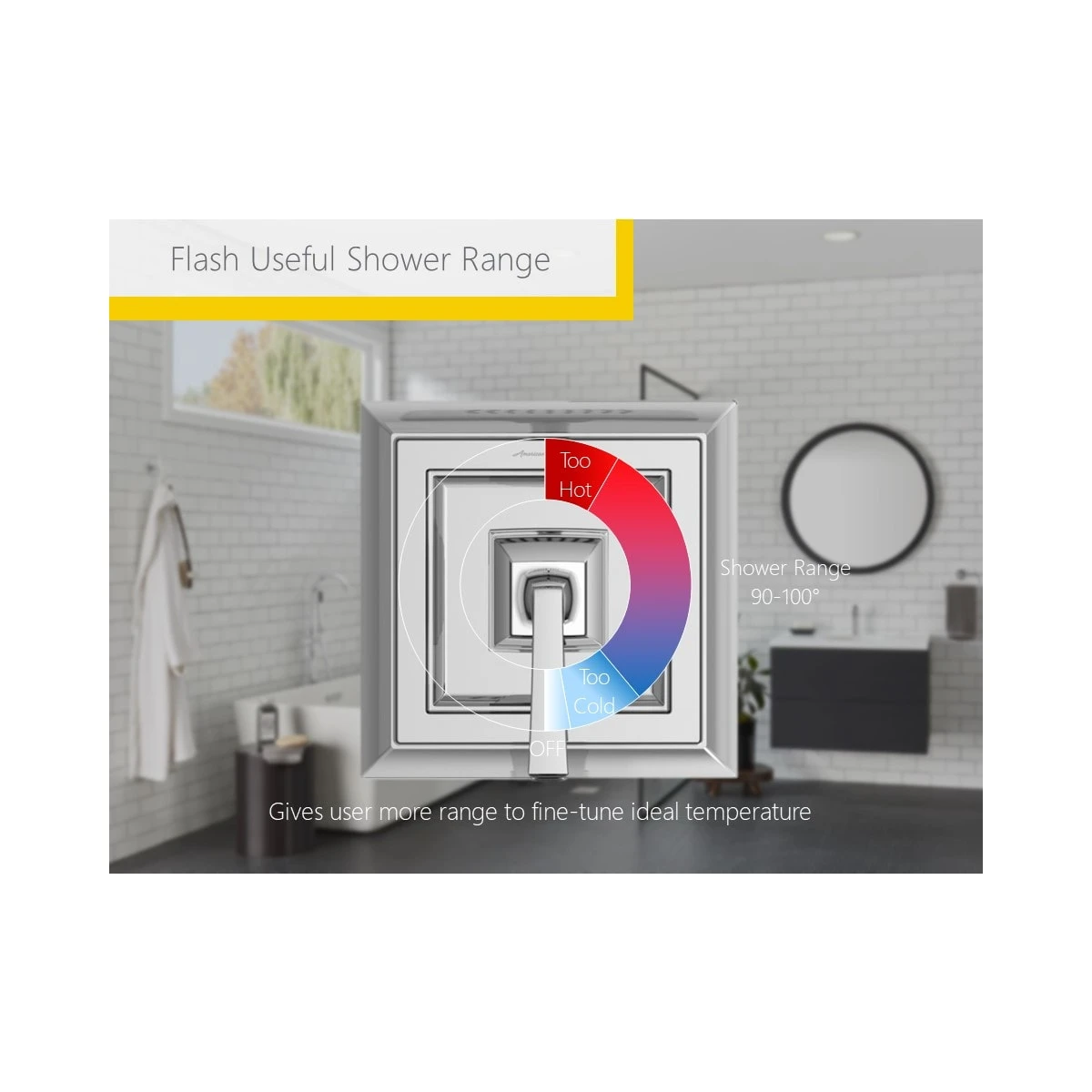

• Adjustable hot limit safety stop limits the amount of hot water allowed to mix with cold – reduces the risk of accidental scalding
• Valve Trim Height: 8-1/4″ (bottom to top)
• Valve Trim Width: 8-1/4″ (left to right)

American Standard RU101SS Features:

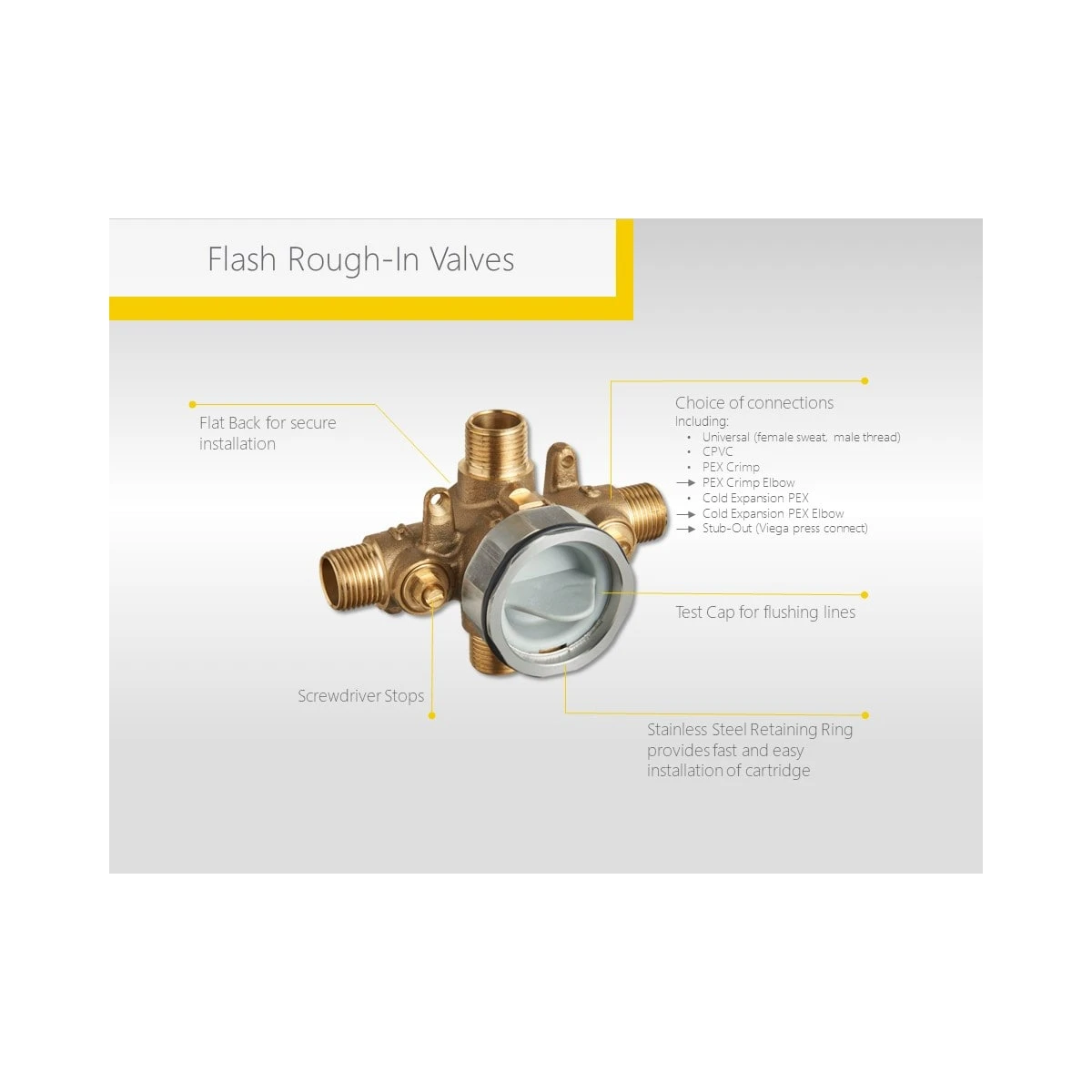

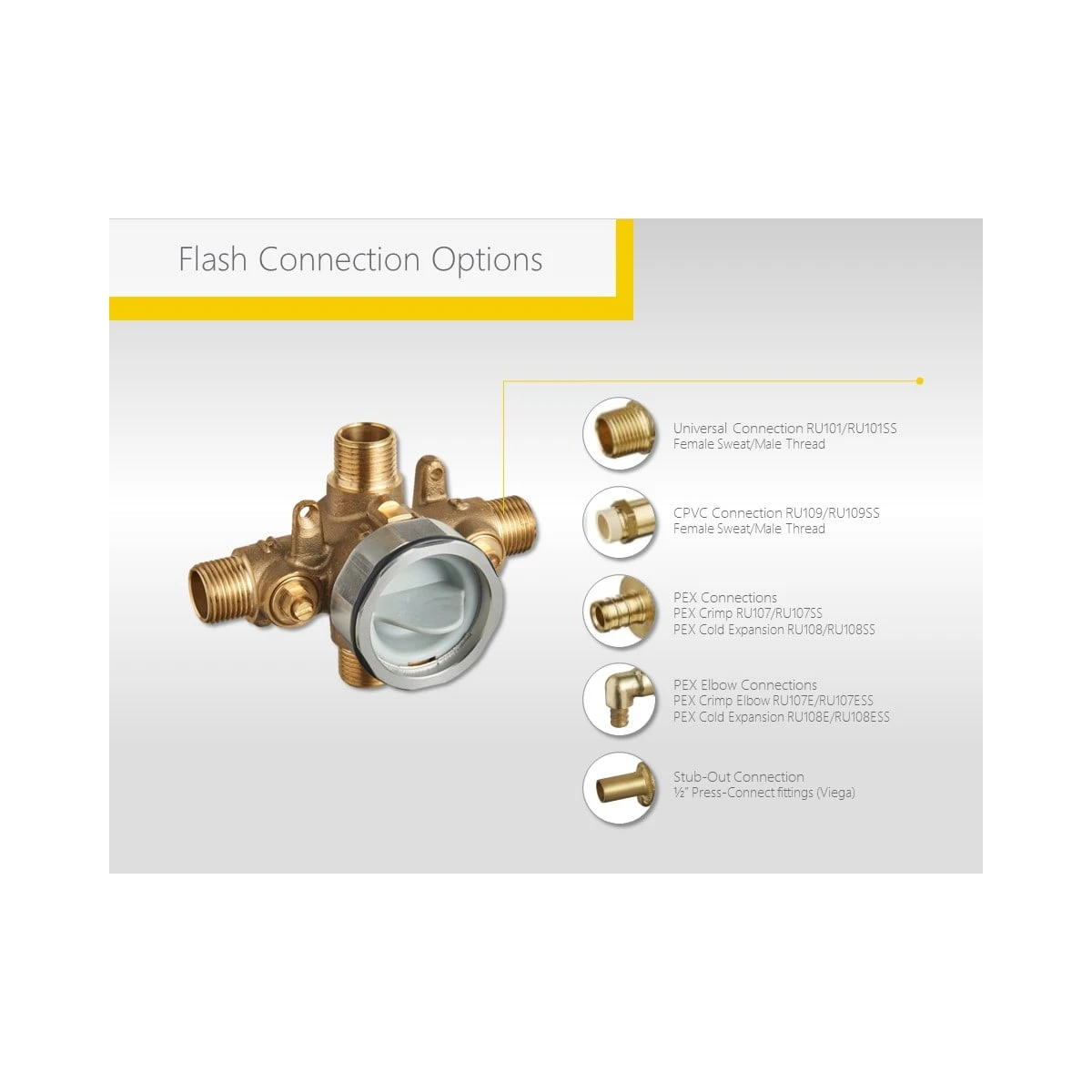

• Choice of connections: Fast and easy installation without adaptors reducing leak points
• Durable cast brass valve body: Ideal material for prolonged contact with water

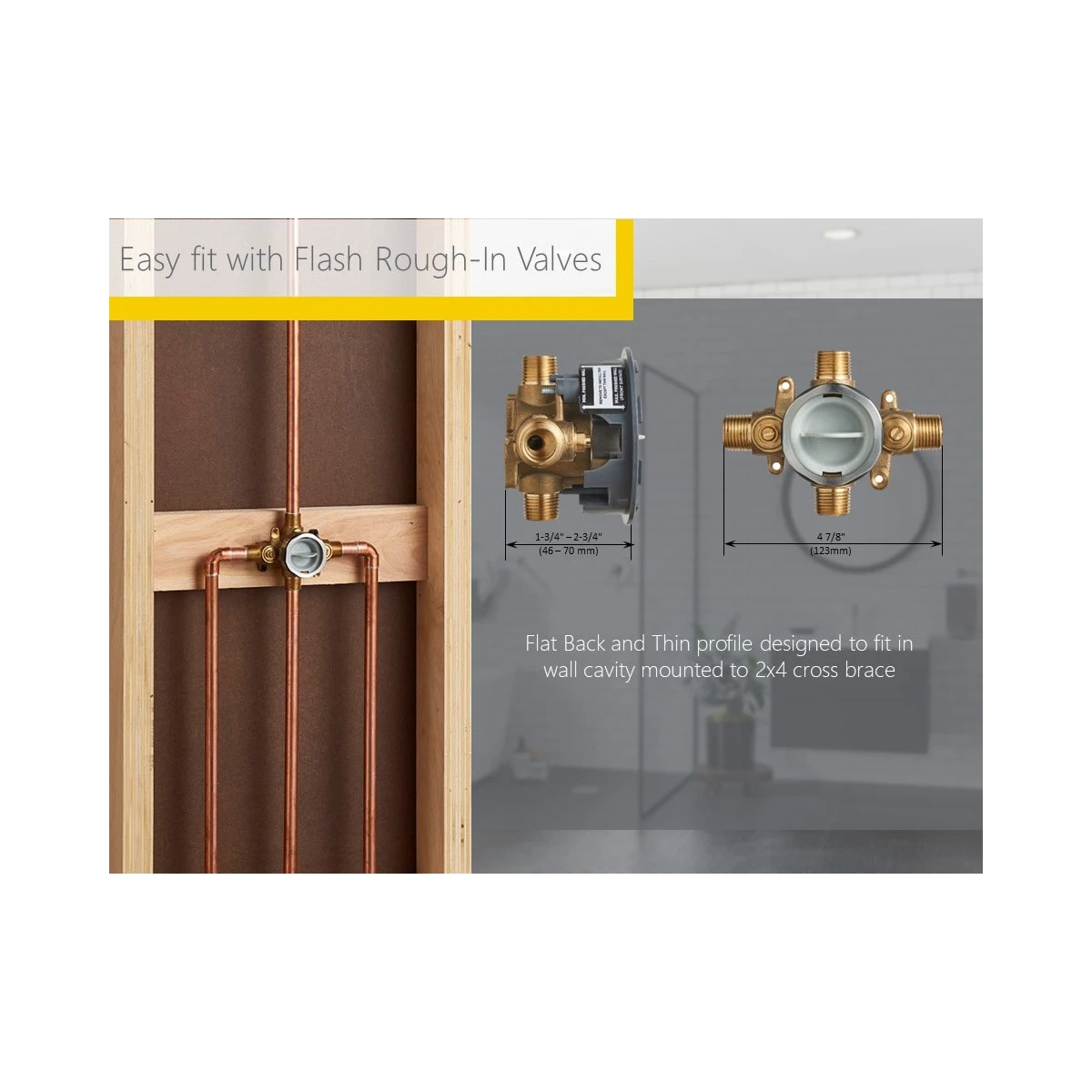

• Flat back: Allows valve to be mounted flush against cross brace for easy and solid installation
• Test cap: Allows valve body to be tested and flushed without the presence of the valve cartridge – can be tested using test cap with air (200 psi) or water (300 psi)
• Stainless steel retaining ring with flats: Secures test cap/cartridge in place and eliminates need for screws
• Back-to-back capability: Hot and cold can be reversed quickly and easily
• Connection Size: 1/2″
• Connection Type: Universal

American Standard 9038.804 Features:

• System includes 11″ rain shower head, 4-function hand shower, 25″ slide bar with Easy Glide, push-button diverter, 15″ shower arm, 69″ metal shower hose, adhesive tape and screws
• Enjoy using shower head and hand shower, alone or together
• Push-button diverter is easy to use
• Rain shower head features single-function drench spray
• Hand shower features Drench, PowerWash, Sensitive, and Massage spray functions
• AquaToggle to easily switch between sprays with one hand
• Shower Head Flow Rate: 1.8 gallons-per-minute
• Shower Head Height: 3-3/16″ (top to bottom)
• Shower Head Width: 11″ (left to right)
• Shower Arm Length: 14-7/8″
• Hose Length: 69″
• Hand Shower Flow Rate: 1.8 gallons-per-minute
• Hand Shower Type: Multi-Function
• Shower system includes wall supply for hand shower
