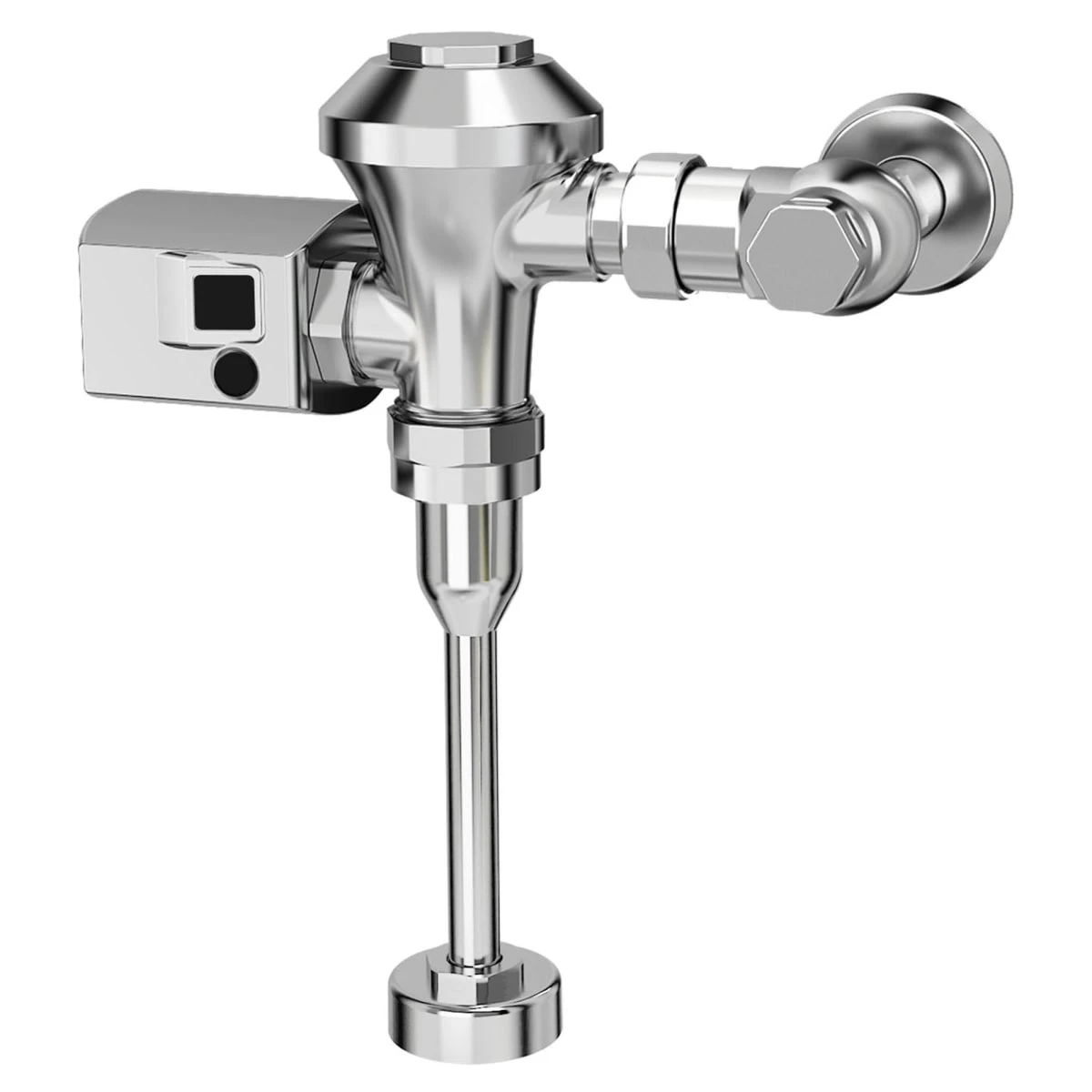

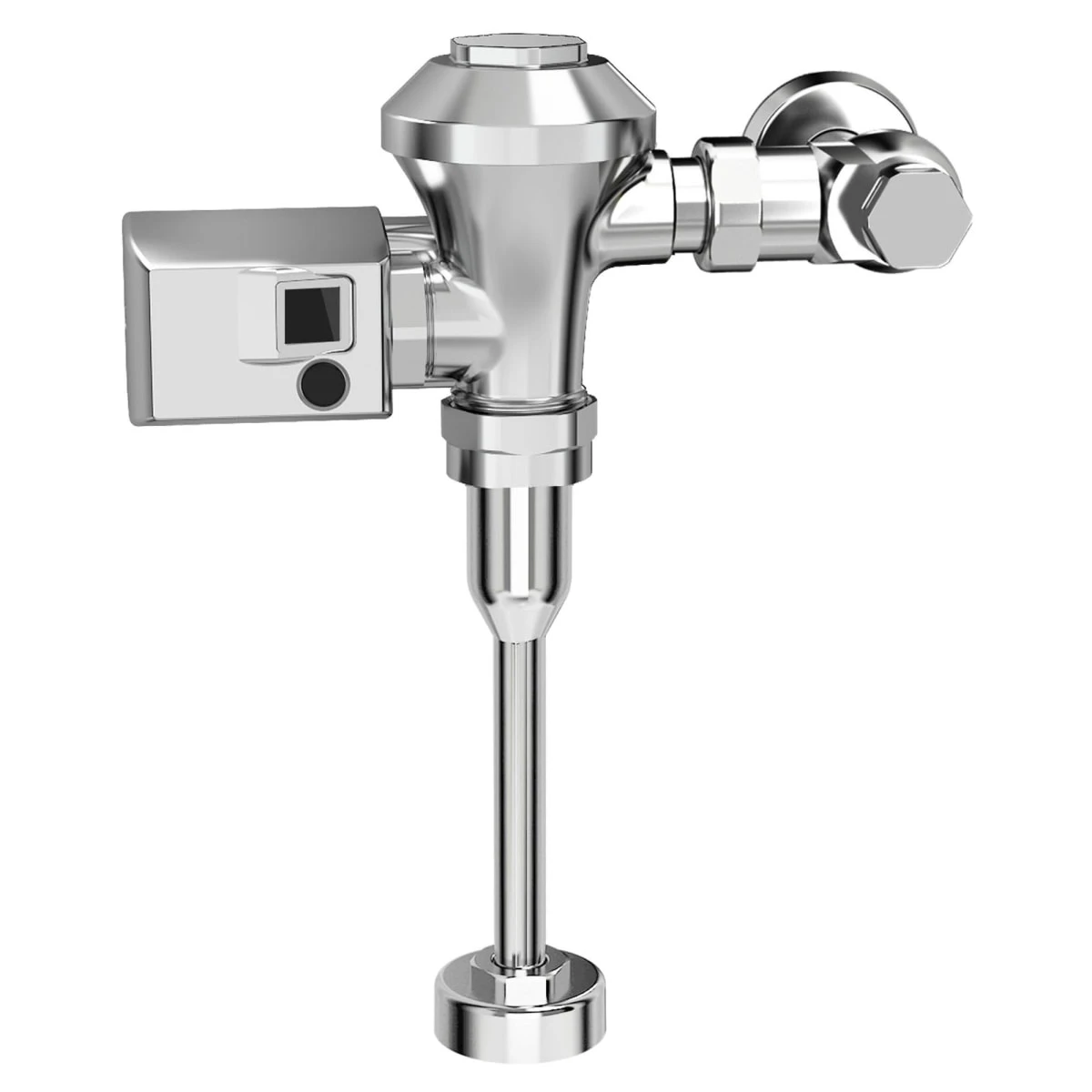

American Standard | Ultima 0.125 GPF Electronic Urinal Flushometer For 3/4″ Top Spud With DynaClean And EvoLast Technologies

American Standard 6145SM.013 Features:

• Hands-free infrared sensor-operated gear actuator with metal housing
• DynaClean wiper spring technology significantly reduces maintenance and downtime
• Premium, chlorine resistant EvoLast diaphragm material prevents premature deterioration and failure
• Dezincification-resistant brass alloy
• Electronic courtesy flush button
• Optional sanitary flush for an automatic flush after 24 hours of non-use
• Features a low battery indicator with a yellow LED light that flashes when batteries need to be replaced
• Easy battery replacement: water does not need to be shut off to change batteries

American Standard 6145SM.013 Technologies and Benefits:

• DynaClean: An exclusive wiper spring positioned at the refill orifice where clogs form. The wiper spring eliminates build-up by clearing the refill orifice with every flush, preventing valve run-on and water waste. The integral wiper spring keeps the orifice clear of debris and mineral build-up for improved performance and less maintenance.

• EvoLast: A premium, chlorine-resistant diaphragm material that delivers consistent performance and resists premature deterioration and failure.

American Standard 6145SM.013 Specifications:

• Height: 14-5/8″ (top to bottom)
• Width: 4-1/4″ (left to right)
• Depth: 2-1/4″ (front to back)
• Flow Rate (GPF): 0.125 gallons-per-flush
• Spud Connection Size: 3/4″
