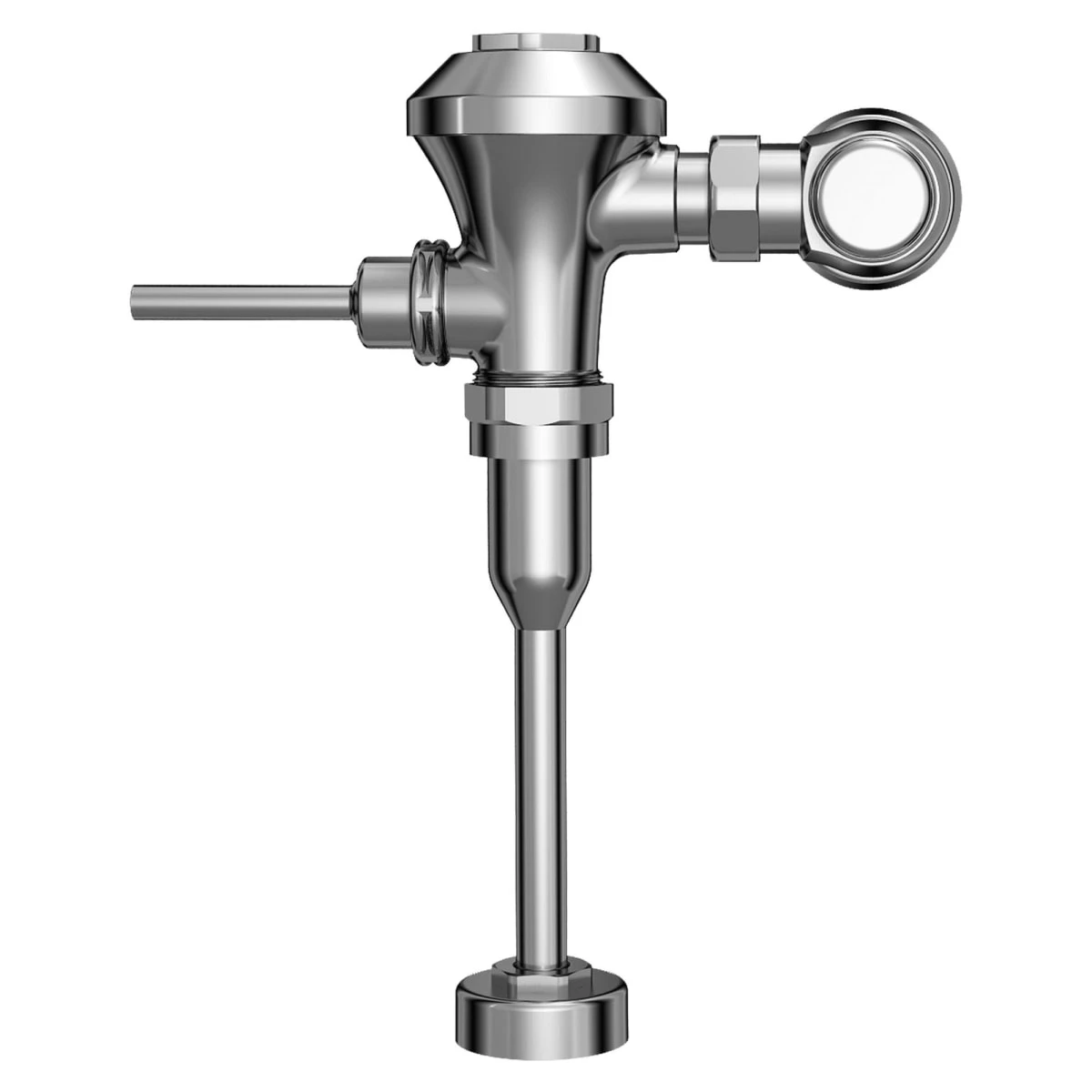

American Standard | Ultima 1 GPF Manual Urinal Flushometer For 3/4″ Top Spud With DynaClean And EvoLast Technologies

American Standard 6145.101 Features:

• DynaClean wiper spring technology significantly reduces maintenance and downtime
• Premium, chlorine resistant EvoLast diaphragm material prevents premature deterioration and failure
• Delivers consistent flushing performance and water savings over time
• Dezincification-resistant brass alloy withstands the most severe water conditions
• Non-hold open handle provides automatic shut-off
• High back pressure vacuum breaker prevents dripping
• Adjustable tailpiece for rough-in flexibility
• Can be installed left or right handed

American Standard 6145.101 Technologies and Benefits:

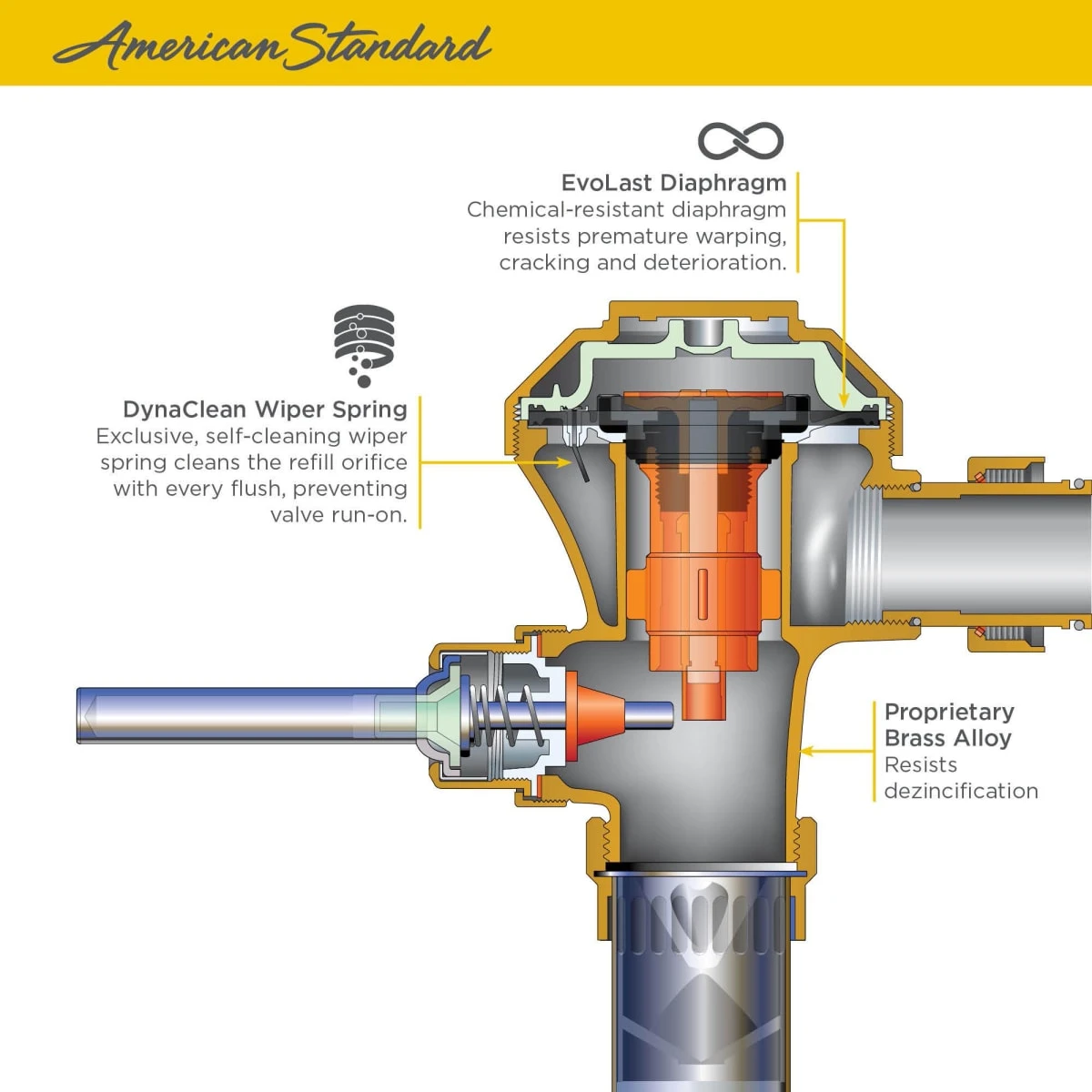

• DynaClean: An exclusive wiper spring positioned at the refill orifice where clogs form. The wiper spring eliminates build-up by clearing the refill orifice with every flush, preventing valve run-on and water waste. The integral wiper spring keeps the orifice clear of debris and mineral build-up for improved performance and less maintenance.

• EvoLast: A premium, chlorine-resistant diaphragm material that delivers consistent performance and resists premature deterioration and failure.

American Standard 6145.101 Specifications:

• Height: 14-5/8″ (top to bottom)
• Width: 4-1/4″ (left to right)
• Depth: 2-1/4″ (front to back)
• Flow Rate (GPF): 1 gallons-per-flush
• Spud Connection Size: 3/4″
